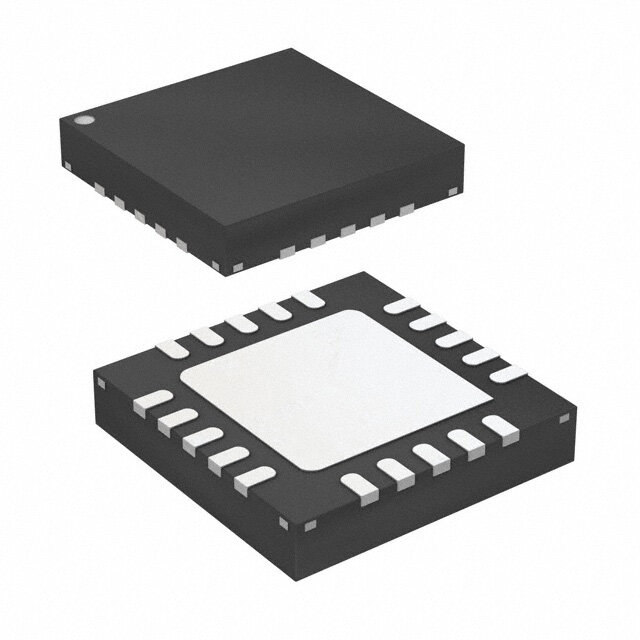

NCP59749MN2ADJTBG
RoHS
RoHS compliant
RoHS compliantPackage 20-VQFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
Tape & Reel (TR) Surface Mount Over Current Over Temperature ROHS3Compliant voltage regulator linear 120mV 950mum 6A -40C~125C
PDF
/
Buying Options
Total Price: USD $12.08
Unit Price: USD $12.0821
≥1 USD $12.0821
≥10 USD $9.91325
≥100 USD $9.60355
≥500 USD $9.29385
≥1000 USD $8.98415
≥3000 USD $8.05505
Inventory: 9005
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 27 Weeks
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 20-VQFN Exposed Pad
Number of Pins 20
Weight 123.008581mg
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2014
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 20
ECCN Code EAR99
Terminal Finish Tin (Sn)
Terminal Position QUAD
Terminal Form NO LEAD
Number of Functions 1
Voltage - Input (Max) 5.5V
Output Voltage 3.6V
Output Type Adjustable
Max Output Current 6A
Operating Supply Current 1.2mA
Output Configuration Positive
Current - Output 3A
Control Features Enable, Power Good, Soft Start
Accuracy 2 %
Voltage - Output (Min/Fixed) 0.8V
Number of Regulators 1
Min Input Voltage 800mV
Protection Features Over Current, Over Temperature
Voltage Dropout (Max) 0.28V @ 3A
PSRR 60dB ~ 30dB (1kHz ~ 300kHz)
Reference Voltage 802mV
Dropout Voltage 120mV
Power Supply Rejection Ratio (PSRR) 60dB
Min Current Limit 3.8A
Input Bias Current 2mA
Dimensions
Height 950μm
Length 5mm
Width 5mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
