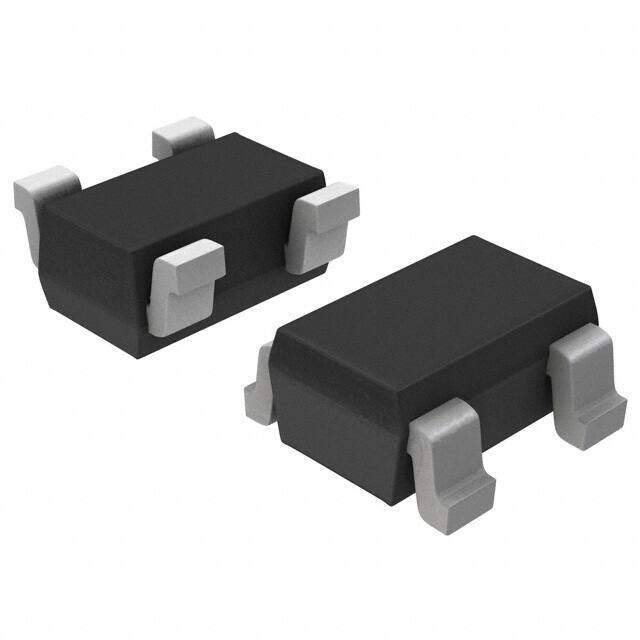

NCP582DSQ33T1G image
Favorite
NCP582DSQ33T1G image
Favorite

NCP582DSQ33T1G

ON Semiconductor
RoHS
/
Package SC-82A, SOT-343
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description NCP582 Tape & Reel (TR) Surface Mount Over Current voltage regulator linear 220mV 1mm 150mA 150mW
PDF
/
Buying Options
Total Price: USD $5.21
Unit Price: USD $5.206
≥1 USD $5.206
≥10 USD $4.27215
≥100 USD $4.1382
≥500 USD $4.0052
≥1000 USD $3.87125
Inventory: 1161
Minimum: 1
-
+

Technical Details

Technical

Dropout Voltage 220mV
Dropout Voltage1-Nom 0.22V
Voltage Tolerance-Max 2%
Input Voltage Absolute-Max 6.5V
Input Bias Current 75μA
PSRR 70dB ~ 60dB (1kHz ~ 10kHz)
Voltage Dropout (Max) 0.35V @ 150mA
Protection Features Over Current
Min Input Voltage 2V
Number of Regulators 1
Output Voltage 1 3.3V
Accuracy 2 %
Control Features Enable
Quiescent Current 95μA
Power Dissipation 150mW
Output Configuration Positive
Max Output Current 150mA
Output Type Fixed
Output Voltage 3.3V
Voltage - Input (Max) 6V
Number of Outputs 1
Pin Count 4
Base Part Number NCP582
Time@Peak Reflow Temperature-Max (s) 40
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Technology CMOS
Max Power Dissipation 150mW
Packing Method TAPE AND REEL
Power Rating 150mW
Subcategory Other Regulators
Terminal Finish Tin (Sn)
ECCN Code EAR99
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e3
Published 2009
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Output Voltage Accuracy 2 %

Physical

Number of Pins 4
Package / Case SC-82A, SOT-343
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Lifecycle Status LAST SHIPMENTS (Last Updated: 2 days ago)
Factory Lead Time 10 Weeks

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Width 1.35mm
Length 2.2mm
Height 1mm
