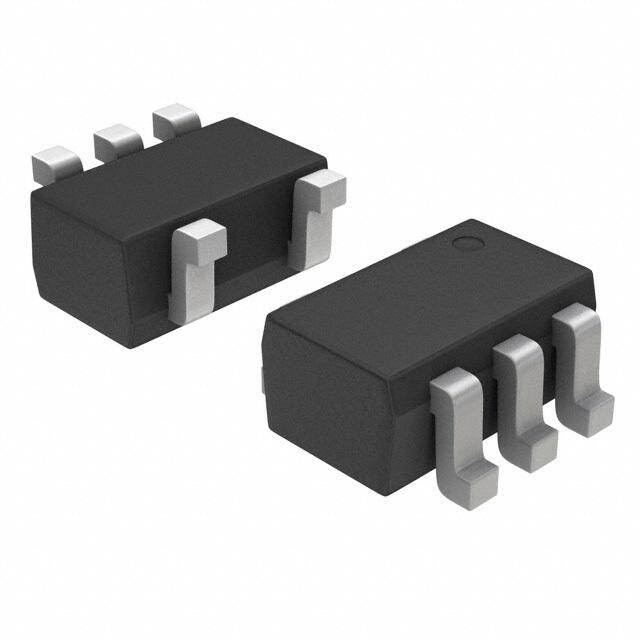

NCP512SQ28T1G image
Favorite
NCP512SQ28T1G image
Favorite

NCP512SQ28T1G

ON Semiconductor
RoHS
/
Package SC
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description Tape and Reel Surface Mount RoHS Compliant Tin (Sn) voltage regulator linear 200mV 2mm 40muA 85C
PDF
/
Buying Options
Total Price: USD $9.44
Unit Price: USD $9.4411
≥1 USD $9.4411
≥10 USD $7.7463
≥100 USD $7.50405
≥500 USD $7.26275
≥1000 USD $7.0205
Inventory: 1114
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Length 2mm

Technical

Line Regulation-Max (%/V) 0.0066%
Load Regulation-Max(%) 0.0632%
Output Voltage Accuracy 2 %
Input Voltage Absolute-Max 6V
Voltage Tolerance-Max 3%
Dropout Voltage1-Nom 0.2V
Dropout Voltage 200mV
Max Input Voltage 6V
Current - Input Bias 40μA
Min Input Voltage 0V
Output Voltage 1 2.8V
Voltage - Output 2.8V
Accuracy 2 %
Quiescent Current 90μA
Current - Output 200mA
Polarity Positive
Output Type Fixed
Number of Outputs 1
Pin Count 5
Time@Peak Reflow Temperature-Max (s) 40
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Technology CMOS
Subcategory Other Regulators
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Tin (Sn)
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1
Pbfree Code yes
JESD-609 Code e3
Published 2007
Packaging Tape and Reel

Physical

Number of Pins 5
Package / Case SC
Mount Surface Mount

Supply Chain

Lifecycle Status CONSULT SALES OFFICE (Last Updated: 1 week ago)
