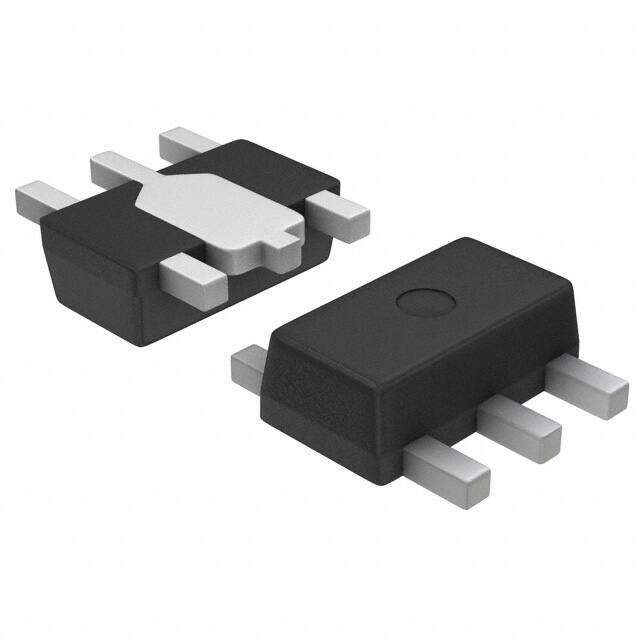

NCP4640H030T1G
RoHS
/
Package SOT-89-5/6
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
NCP4640 Tape & Reel (TR) Surface Mount Over Current Over Temperature Short Circuit voltage regulator linear 1V 1.6mm 50mA 900mW
PDF
/
Inventory: 5423
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 2.6mm
Length 4.6mm
Height 1.6mm
Technical
Output Voltage Accuracy 2 %
Voltage Tolerance-Max 2%
Power Supply Rejection Ratio (PSRR) 30dB
Min Output Voltage 3V
Dropout Voltage1-Nom 1V
Dropout Voltage 1V
PSRR 30dB (1kHz)
Halogen Free Halogen Free
Voltage Dropout (Max) 1V @ 20mA
Protection Features Over Current, Over Temperature, Short Circuit
Min Input Voltage 4V
Number of Regulators 1
Output Voltage 1 3V
Accuracy 2 %
Control Features Enable
Quiescent Current 20μA
Power Dissipation 900mW
Output Configuration Positive
Max Output Current 50mA
Output Type Fixed
Output Voltage 3V
Voltage - Input (Max) 36V
Number of Outputs 1
Pin Count 5
Base Part Number NCP4640
Number of Functions 1
Terminal Form FLAT
Terminal Position DUAL
Technology CMOS
Max Power Dissipation 900mW
Packing Method TAPE AND REEL
Subcategory Other Regulators
Terminal Finish Tin (Sn)
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e3
Published 1994
Packaging Tape & Reel (TR)
Operating Temperature -40°C~150°C
Physical
Number of Pins 5
Package / Case SOT-89-5/6
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status LAST SHIPMENTS (Last Updated: 5 days ago)
Factory Lead Time 10 Weeks
