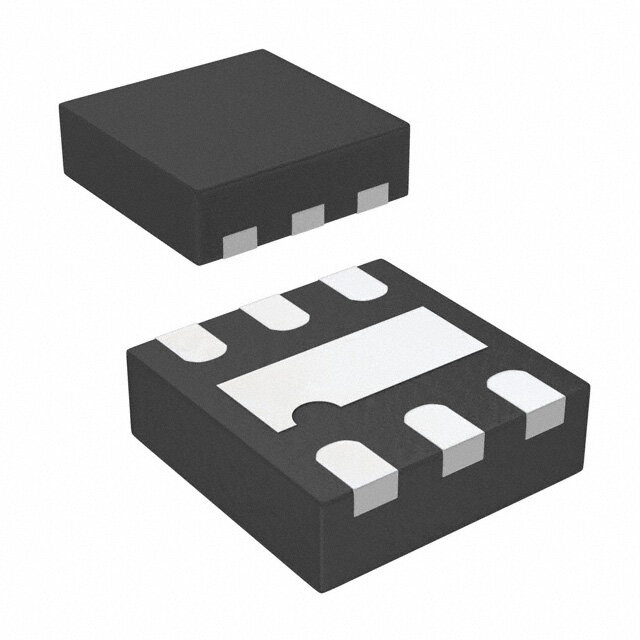

NCP176AMX120TCG
RoHS
RoHS compliant
RoHS compliantPackage 6-XFDFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
Tape & Reel (TR) Surface Mount Over Current Over Temperature ROHS3Compliant voltage regulator linear 1.2V 0.45mm 90muA -40C~85C
PDF
/
Buying Options
Total Price: USD $0.42
Unit Price: USD $0.4224
≥1 USD $0.4224
≥10 USD $0.34144
≥100 USD $0.312224
≥500 USD $0.210584
≥1000 USD $0.174275
≥3000 USD $0.159755
Inventory: 5016
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 6-XFDFN Exposed Pad
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Published 2015
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 6
Terminal Finish Nickel/Gold/Palladium (Ni/Au/Pd)
Technology CMOS
Terminal Position DUAL
Terminal Form NO LEAD
Number of Functions 1
Terminal Pitch 0.4mm
JESD-30 Code S-PDSO-N6
Voltage - Input (Max) 5.5V
Output Voltage 1.2V
Output Type Fixed
Output Configuration Positive
Control Features Enable
Output Voltage 1 1.2V
Voltage - Output (Min/Fixed) 1.2V
Number of Regulators 1
Protection Features Over Current, Over Temperature
Current - Quiescent (Iq) 90μA
PSRR 75dB (1kHz)
Output Current1-Max 0.5A
Min Current Limit 500mA
Dimensions
Height Seated (Max) 0.45mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
