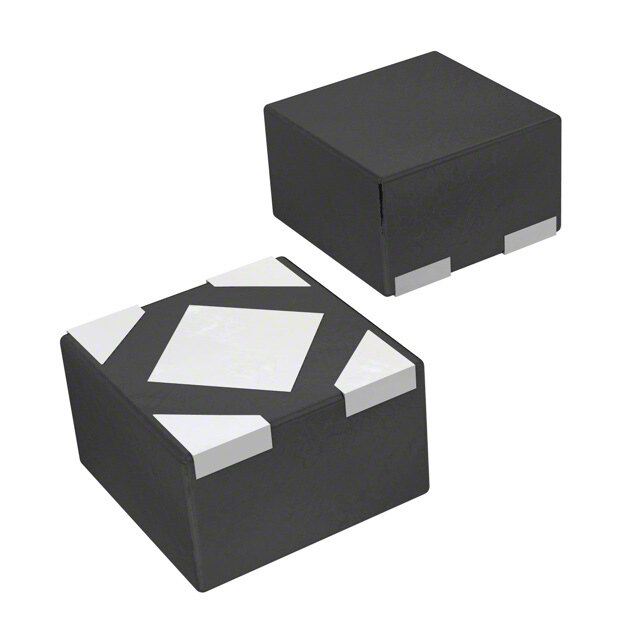

NCP115CMX300TCG
RoHS
RoHS compliant
RoHS compliantPackage 4-XDFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
Tape & Reel (TR) Surface Mount Over Current Over Temperature ROHS3Compliant voltage regulator linear 3.06V 0.43mm 300mA -40C~85C TJ
PDF
/
Buying Options
Total Price: USD $0.34
Unit Price: USD $0.3432
≥1 USD $0.3432
≥10 USD $0.25608
≥100 USD $0.231264
≥500 USD $0.126104
≥1000 USD $0.121933
≥3000 USD $0.109296
Inventory: 6071
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mounting Type Surface Mount
Package / Case 4-XDFN Exposed Pad
Surface Mount YES
Technical
Operating Temperature -40°C~85°C TJ
Packaging Tape & Reel (TR)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
Terminal Finish Nickel/Gold/Palladium (Ni/Au/Pd)
Terminal Position DUAL
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Terminal Pitch 0.65mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code S-PDSO-N4
Voltage - Input (Max) 5.5V
Output Type Fixed
Output Configuration Positive
Current - Output 300mA
Control Features Enable
Output Voltage 1 3V
Input Voltage (Min) 3.5V
Voltage - Output (Min/Fixed) 3V
Number of Regulators 1
Protection Features Over Current, Over Temperature
Current - Quiescent (Iq) 95μA
PSRR 70dB (1kHz)
Output Voltage1-Max 3.06V
Output Voltage1-Min 2.94V
Dimensions
Height Seated (Max) 0.43mm
Compliance
RoHS Status ROHS3 Compliant
