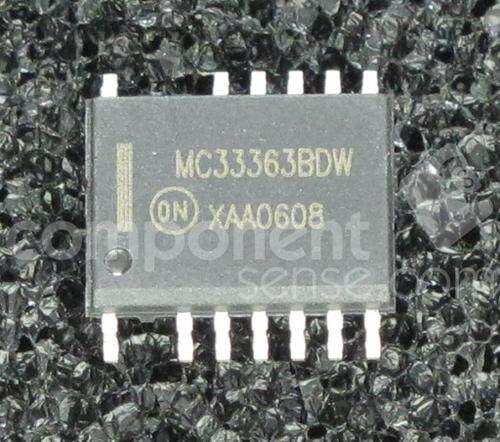

MC33363BDW
RoHS
/
Package /
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
Contains Lead SINGLE GULL WING Not Qualified voltage regulator linear 1A 315kHz 10.3mm 40V
PDF
/
Buying Options
Total Price: USD $8.06
Unit Price: USD $8.05505
≥1 USD $8.05505
≥10 USD $6.60915
≥100 USD $6.403
≥500 USD $6.1959
≥1000 USD $5.98975
Inventory: 3180
Minimum: 1
-
+
Technical Details
Physical
Surface Mount YES
Number of Pins 16
Technical
Published 2005
JESD-609 Code e0
Moisture Sensitivity Level (MSL) 1
Number of Terminations 13
ECCN Code EAR99
Terminal Finish Tin/Lead (Sn/Pb)
HTS Code 8542.39.00.01
Subcategory Switching Regulator or Controllers
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 240
Number of Functions 1
Terminal Pitch 1.27mm
Reach Compliance Code not_compliant
Time@Peak Reflow Temperature-Max (s) 30
Pin Count 13
JESD-30 Code R-PDSO-G13
Qualification Status Not Qualified
Input Voltage-Nom 20V
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage (Min) 20V
Control Mode VOLTAGE-MODE
Output Current-Max 1A
Input Voltage (Max) 40V
Control Technique PULSE WIDTH MODULATION
Switcher Configuration SINGLE
Switching Frequency-Max 315kHz
Dimensions
Height Seated (Max) 2.65mm
Length 10.3mm
Width 7.5mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
