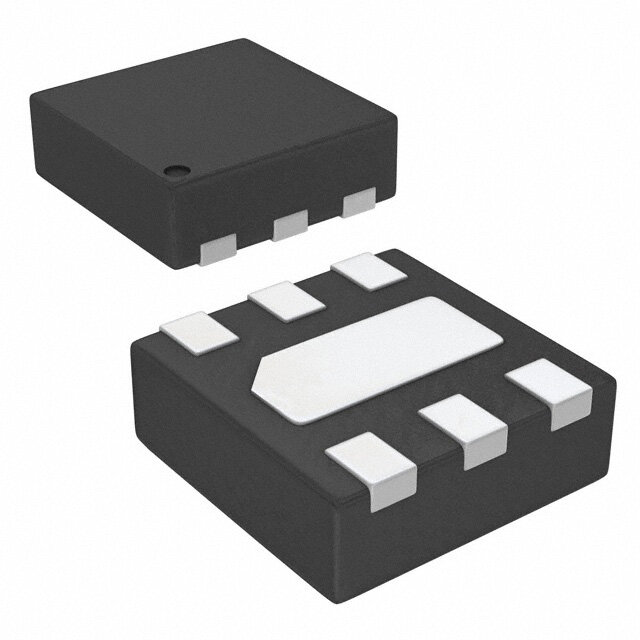

FAN2559MP10X
RoHS
/
Package 6-VDFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
FAN2559 Tape & Reel (TR) Surface Mount Over Current Over Temperature voltage regulator linear 2.7V 2mm 180mA -40C~85C
PDF
/
Inventory: 3134
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 6-VDFN Exposed Pad
Surface Mount YES
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 6
Technology BICMOS
Terminal Position DUAL
Terminal Form NO LEAD
Number of Functions 1
Terminal Pitch 0.65mm
Reach Compliance Code compliant
Base Part Number FAN2559
JESD-30 Code S-PDSO-N6
Voltage - Input (Max) 5.5V
Output Type Fixed
Output Configuration Positive
Current - Output 180mA
Control Features Enable, Power Good
Output Voltage 1 1V
Input Voltage (Min) 2.7V
Voltage - Output (Min/Fixed) 1V
Number of Regulators 1
Protection Features Over Current, Over Temperature
Current - Quiescent (Iq) 150μA
PSRR 50dB (100kHz)
Output Voltage1-Min 0.98V
Dimensions
Length 2mm
Width 2mm
