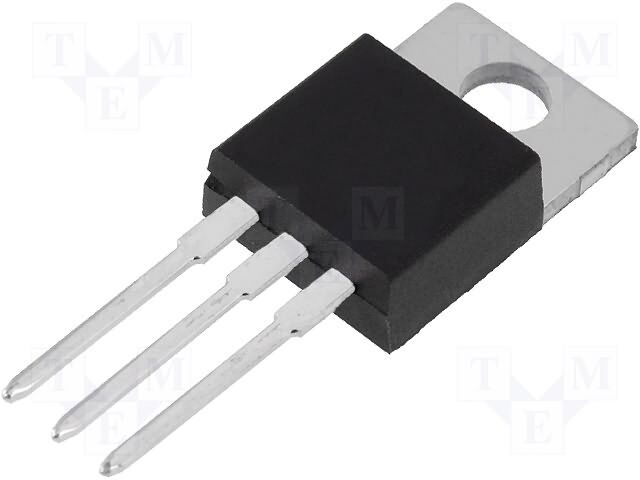

CS8161YTHA5G
RoHS
/
Package /
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
Discontinued Lead Free THROUGH-HOLE Not Qualified voltage regulator linear 150C 0.4A 1.7mm 12.6V
PDF
/
Inventory: 8295
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Surface Mount NO
Technical
JESD-609 Code e3
Pbfree Code yes
Part Status Discontinued
Number of Terminations 5
ECCN Code EAR99
Terminal Finish Tin (Sn)
HTS Code 8542.39.00.01
Subcategory Other Regulators
Technology BIPOLAR
Terminal Position SINGLE
Terminal Form THROUGH-HOLE
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Terminal Pitch 1.7mm
Time@Peak Reflow Temperature-Max (s) 40
Pin Count 5
JESD-30 Code R-PSFM-T5
Number of Outputs 2
Qualification Status Not Qualified
Operating Temperature (Max) 125°C
Operating Temperature (Min) -40°C
Output Voltage 1 12V
Input Voltage (Min) 6V
Input Voltage (Max) 26V
Dropout Voltage1-Nom 0.4V
Output Voltage1-Max 12.6V
Output Voltage1-Min 11.4V
Regulator Type FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR
Voltage Tolerance-Max 5%
Output Current1-Max 0.4A
Dropout Voltage1-Max 0.6V
Operating Temperature TJ-Max 150°C
Input Voltage Absolute-Max 26V
Adjustability FIXED
Load Regulation-Max(%) 0.08%
Output Voltage 2 5V
Line Regulation-Max (%/V) 0.08%
Operating Temperature TJ-Min -40°C
Output Voltage2-Max 5.1V
Output Voltage2-Min 4.9V
Output Current2-Max 0.2A
Dropout Voltage2-Max 0.6V
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
