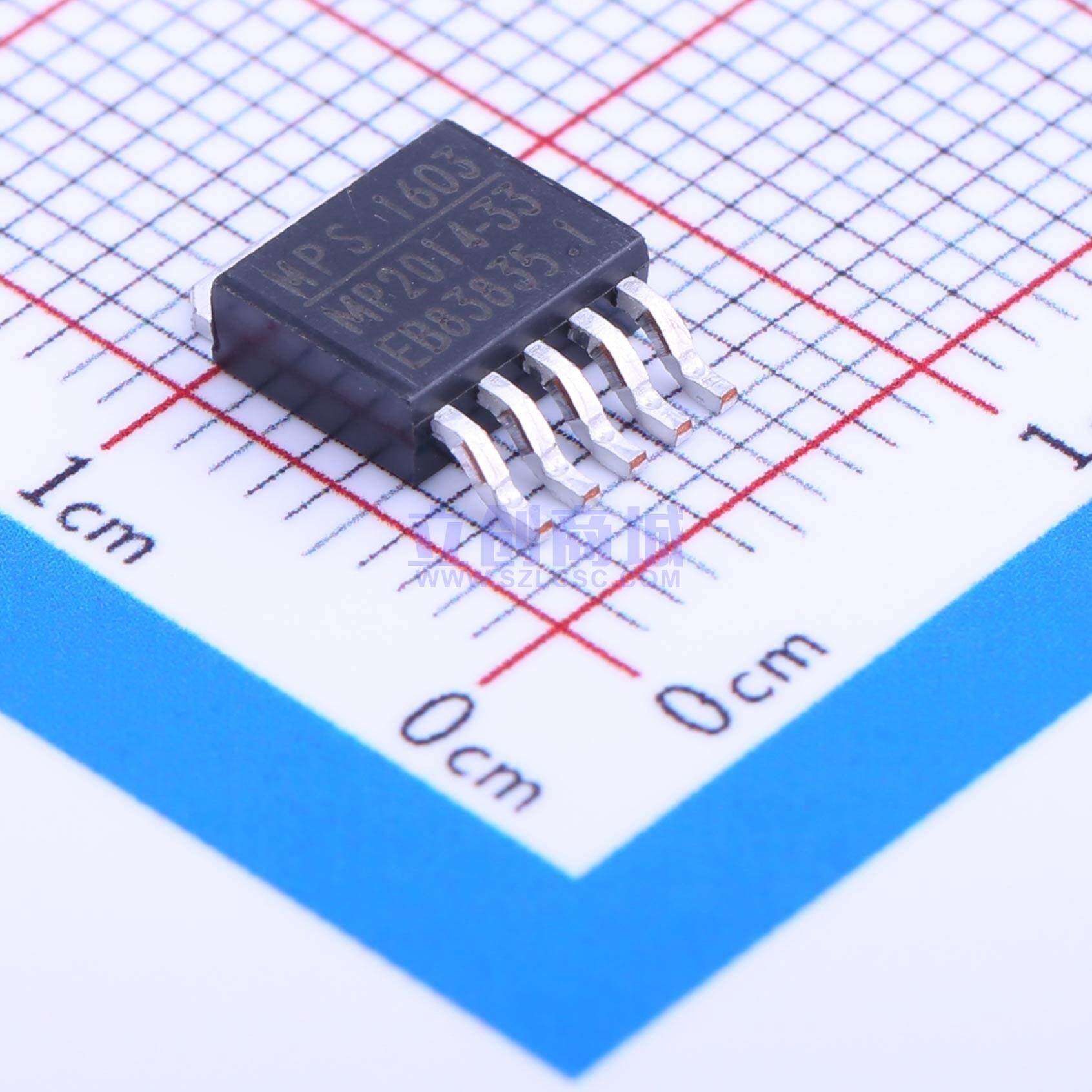

MP2014GZD-33-Z
RoHS
/
Package TO-252-6, DPak (5 Leads + Tab)
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
Tape & Reel (TR) Surface Mount Over Current Over Temperature Short Circuit Under Voltage Lockout (UVLO) Non-RoHS Compliant voltage regulator linear 40V 500mA -40C~125C TA
PDF
/
Buying Options
Total Price: USD $1.34
Unit Price: USD $1.34235
≥1 USD $1.34235
≥10 USD $1.102
≥100 USD $1.0678
≥500 USD $1.03265
≥1000 USD $0.99845
Inventory: 6422
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mounting Type Surface Mount
Package / Case TO-252-6, DPak (5 Leads + Tab)
Technical
Operating Temperature -40°C~125°C TA
Packaging Tape & Reel (TR)
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 3
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Peak Reflow Temperature (Cel) 260
Time@Peak Reflow Temperature-Max (s) 40
Current - Supply (Max) 150μA
Voltage - Input (Max) 40V
Output Type Fixed
Output Configuration Positive
Current - Output 500mA
Control Features Current Limit, Power Good
Voltage - Output (Min/Fixed) 3.3V
Number of Regulators 1
Protection Features Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Current - Quiescent (Iq) 17μA
Voltage Dropout (Max) 1.3V @ 500mA
PSRR 57dB ~ 51dB (100Hz ~ 100kHz)
Compliance
RoHS Status Non-RoHS Compliant
