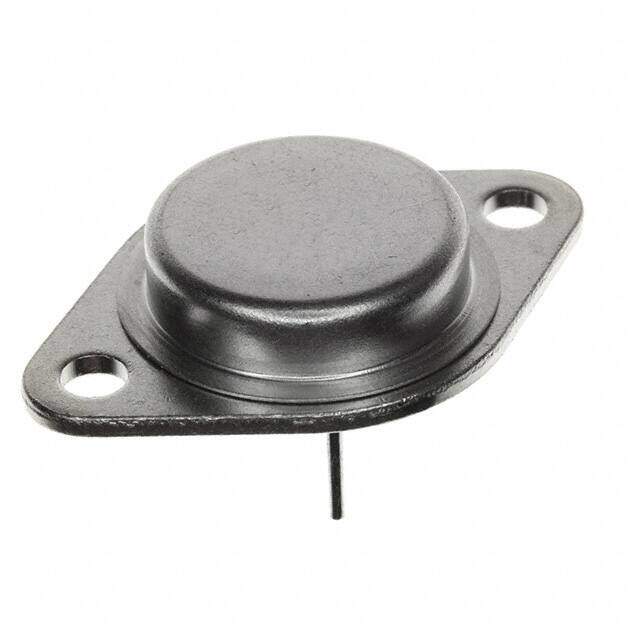

SG7915K-JAN
RoHS
RoHS compliant
RoHS compliantPackage TO-204AA, TO-3
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
SG7915 Tray Through Hole Over Current Over Temperature Short Circuit voltage regulator linear 1.1V 1.5A -55C~125C
PDF
/
Buying Options
Total Price: USD $107.08
Unit Price: USD $107.081437
≥1 USD $107.081437
≥200 USD $42.727018
≥500 USD $41.298582
≥1000 USD $40.593555
Inventory: 1347
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Min Current Limit 1.5A
Dropout Voltage 1.1V
PSRR 54dB (120Hz)
Voltage Dropout (Max) 2.3V @ 1A
Current - Quiescent (Iq) 4mA
Protection Features Over Current, Over Temperature, Short Circuit
Number of Regulators 1
Voltage - Output (Min/Fixed) -15V
Quiescent Current 3mA
Current - Output 1.5A
Output Configuration Negative
Polarity Negative
Output Type Fixed
Output Voltage -15V
Voltage - Input (Max) -40V
Number of Outputs 1
Base Part Number SG7915
Min Operating Temperature -55°C
Max Operating Temperature 150°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Military, MIL-STD-883
Published 2007
Packaging Tray
Operating Temperature -55°C~125°C
Physical
Supplier Device Package TO-3
Package / Case TO-204AA, TO-3
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 10 Weeks
