SG7915K
RoHS
/

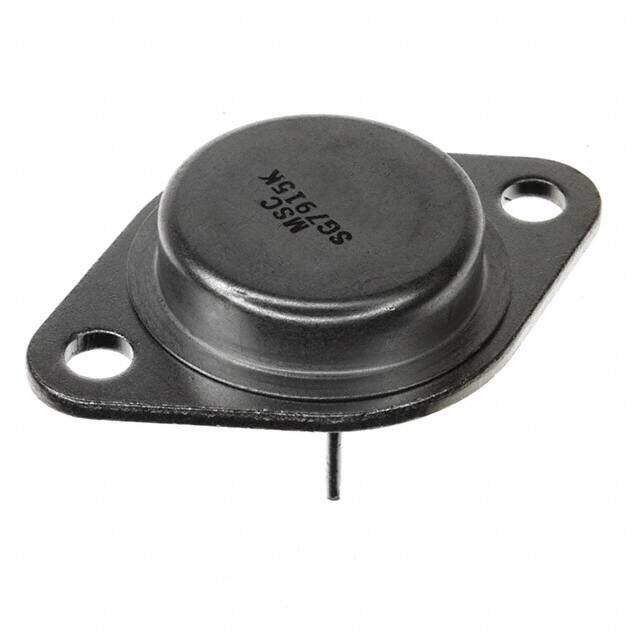

Package TO-204AA, TO-3
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
SG7915 Bulk Through Hole Over Current Over Temperature Thermal Shutdown voltage regulator linear 2.3V 3.3A -55C~125C TA
PDF
/
Inventory: 2811
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Lifecycle Status IN PRODUCTION (Last Updated: 2 weeks ago)
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case TO-204AA, TO-3
Technical
Operating Temperature -55°C~125°C TA
Packaging Bulk
Published 1999
Series Military, MIL-STD-883
JESD-609 Code e0
Pbfree Code no
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish TIN LEAD
Subcategory Other Regulators
Technology BIPOLAR
Terminal Position BOTTOM
Terminal Form PIN/PEG
Number of Functions 1
Base Part Number SG7915
Pin Count 2
JESD-30 Code O-MBFM-P2
Number of Outputs 1
Voltage - Input (Max) -35V
Output Voltage -15V
Output Type Fixed
Max Output Current 3.3A
Output Configuration Negative
Current - Output 1.5A
Quiescent Current 3mA
Accuracy 1.5 %
Output Voltage 1 15V
Number of Regulators 1
Protection Features Over Current, Over Temperature, Thermal Shutdown
Current - Quiescent (Iq) 4mA
Voltage Dropout (Max) 2.3V @ 500mA
PSRR 54dB (120Hz)
Dropout Voltage1-Nom 2.3V
Voltage Tolerance-Max 5%
Input Voltage Absolute-Max 40V
Compliance
Radiation Hardening No
RoHS Status Non-RoHS Compliant
Lead Free Exempt
Alternative Model
