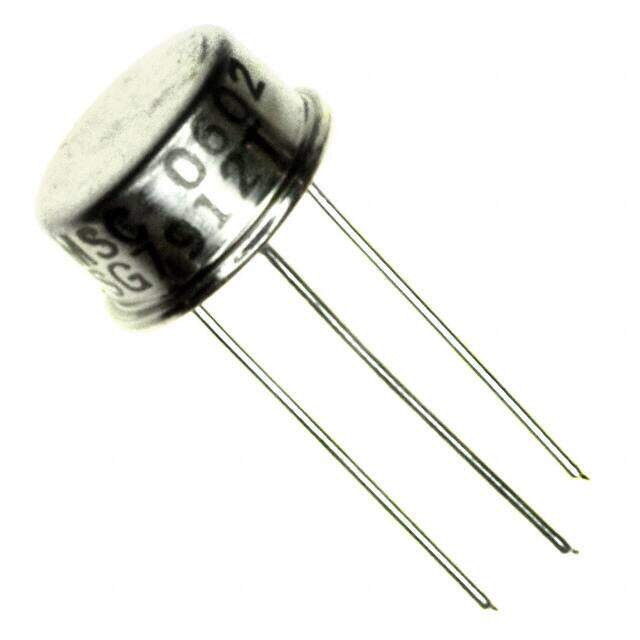

SG7912T
RoHS
/
Package TO-205AD, TO-39-3 Metal Can
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
SG7912 Bulk Through Hole Over Current Over Temperature Thermal Shutdown voltage regulator linear 2V 1.4A -55C~125C TA
PDF
/
Inventory: 6826
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Terminal Position BOTTOM
Terminal Form WIRE
Number of Functions 1
Base Part Number SG7912
JESD-30 Code O-MBCY-W3
Number of Outputs 1
Voltage - Input (Max) -35V
Output Voltage -12V
Output Type Fixed
Max Output Current 1.4A
Output Configuration Negative
Current - Output 1.5A
Quiescent Current 3mA
Accuracy 1.5 %
Output Voltage 1 12V
Number of Regulators 1
Protection Features Over Current, Over Temperature, Thermal Shutdown
Current - Quiescent (Iq) 4mA
Voltage Dropout (Max) 2.3V @ 500mA
PSRR 54dB (120Hz)
Dropout Voltage 2V
Dropout Voltage1-Nom 2.3V
Voltage Tolerance-Max 5%
Input Voltage Absolute-Max 35V
Technology BIPOLAR
Subcategory Other Regulators
Terminal Finish TIN LEAD
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code no
JESD-609 Code e0
Series Military, MIL-STD-883
Published 1999
Packaging Bulk
Operating Temperature -55°C~125°C TA
Compliance
Radiation Hardening No
RoHS Status Non-RoHS Compliant
Lead Free Exempt
Physical
Package / Case TO-205AD, TO-39-3 Metal Can
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Lifecycle Status IN PRODUCTION (Last Updated: 2 weeks ago)
Factory Lead Time 10 Weeks
