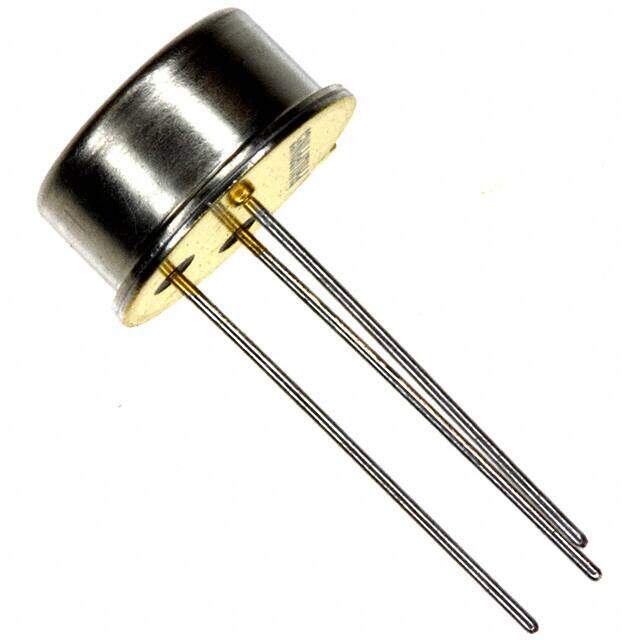

SG7905AT
RoHS
/
Package TO-39
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
SG7905 Bulk Through Hole Over Current Over Temperature Short Circuit voltage regulator linear 2.3V 1.4A -55C~150C
PDF
/
Buying Options
Total Price: USD $6.91
Unit Price: USD $6.91315
≥1 USD $6.91315
≥10 USD $5.67245
≥100 USD $5.4948
≥500 USD $5.31715
≥1000 USD $5.14045
Inventory: 1010
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Exempt
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Technical
Input Voltage Absolute-Max 35V
Screening Level MIL-STD-883
Voltage Tolerance-Max 3%
Dropout Voltage1-Nom 2.3V
PSRR 54dB (120Hz)
Voltage Dropout (Max) 2.3V @ 500mA
Current - Quiescent (Iq) 2.5mA
Protection Features Over Current, Over Temperature, Short Circuit
Number of Regulators 1
Input Voltage (Min) 7.5V
Output Voltage 1 5V
Accuracy 1.5 %
Quiescent Current 2mA
Current - Output 500mA
Output Configuration Negative
Max Output Current 1.4A
Output Type Fixed
Output Voltage -5V
Voltage - Input (Max) -35V
Number of Outputs 1
JESD-30 Code O-MBCY-W3
Base Part Number SG7905
Number of Functions 1
Terminal Form WIRE
Terminal Position BOTTOM
Technology BIPOLAR
Subcategory Other Regulators
Terminal Finish TIN LEAD
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code no
JESD-609 Code e0
Published 1999
Packaging Bulk
Operating Temperature -55°C~150°C
Physical
Package / Case TO-39
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Lifecycle Status IN PRODUCTION (Last Updated: 1 month ago)
Factory Lead Time 10 Weeks
