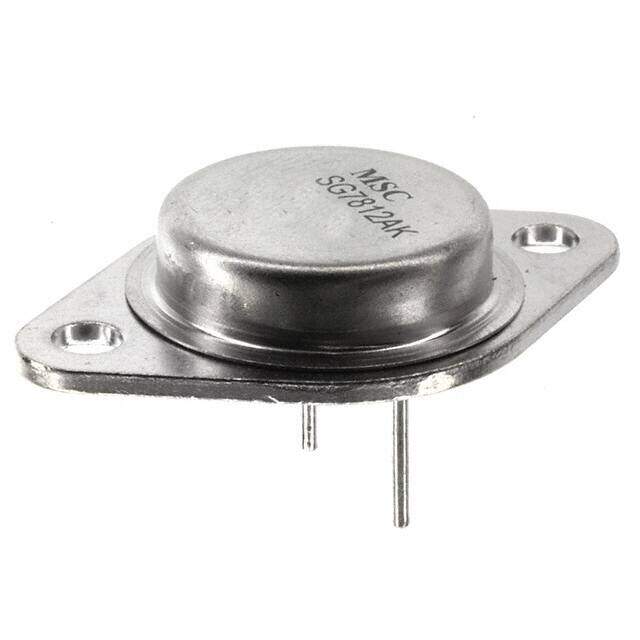

SG7812AK-DESC
RoHS
RoHS compliant
RoHS compliantPackage TO-204AA, TO-3
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
SG7812 Tray Through Hole Over Current Over Temperature voltage regulator linear 2V 3.3A -55C~125C TA
PDF
/
Buying Options
Total Price: USD $1.07
Unit Price: USD $1.073935
≥1 USD $1.073935
≥10 USD $1.013146
≥100 USD $0.955798
≥500 USD $0.901693
≥1000 USD $0.850662
Inventory: 1181
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Technical
Output Voltage Accuracy 1.5 %
Input Voltage Absolute-Max 35V
Screening Level 38535Q/M;38534H;883B
Min Current Limit 1.5A
Dropout Voltage1-Nom 2V
Dropout Voltage 2V
PSRR 61dB (120Hz)
Voltage Dropout (Max) 2.5V @ 500mA
Protection Features Over Current, Over Temperature
Number of Regulators 1
Voltage - Output (Min/Fixed) 12V
Output Voltage 1 12V
Accuracy 1.5 %
Control Features Current Limit, Enable
Quiescent Current 6mA
Output Configuration Positive
Max Output Current 3.3A
Output Type Fixed
Output Voltage 12V
Voltage - Input (Max) 50V
Number of Outputs 1
Current - Supply (Max) 7mA
JESD-30 Code O-MBFM-P2
Pin Count 2
Base Part Number SG7812
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position BOTTOM
Technology BIPOLAR
Subcategory Other Regulators
Terminal Finish TIN LEAD
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code no
JESD-609 Code e0
Series Military, MIL-STD-883
Published 1999
Packaging Tray
Operating Temperature -55°C~125°C TA
Physical
Package / Case TO-204AA, TO-3
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Lifecycle Status IN PRODUCTION (Last Updated: 1 month ago)
Factory Lead Time 14 Weeks
Alternative Model
