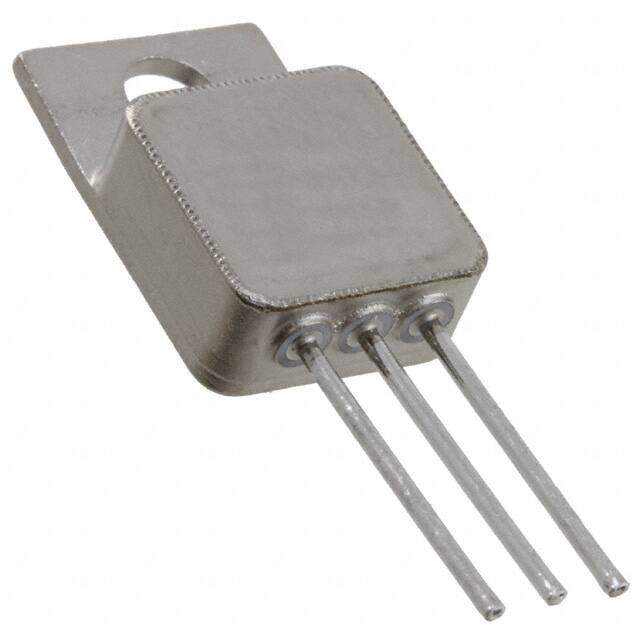

SG7812AIG-883B
RoHS
/
Package TO-257-3
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
SG7812 Bulk Through Hole Over Current Over Temperature voltage regulator linear 2V 1.5A -55C~125C TA
PDF
/
Buying Options
Total Price: USD $30.4
Unit Price: USD $30.403393
≥1 USD $30.403393
≥10 USD $28.682453
≥100 USD $27.058904
≥500 USD $25.527276
≥1000 USD $24.082334
Inventory: 1473
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Radiation Hardening Yes
Technical
Output Voltage Accuracy 1.5 %
Min Current Limit 1.5A
Dropout Voltage1-Nom 2V
Dropout Voltage 2V
PSRR 61dB (120Hz)
Voltage Dropout (Max) 2.5V @ 500mA
Protection Features Over Current, Over Temperature
Number of Regulators 1
Output Voltage 1 12V
Accuracy 1.5 %
Control Features Current Limit, Enable
Quiescent Current 6mA
Output Configuration Positive
Max Output Current 1.5A
Output Type Fixed
Output Voltage 12V
Voltage - Input (Max) 50V
Qualification Status Not Qualified
Number of Outputs 1
Current - Supply (Max) 7mA
Pin Count 3
Base Part Number SG7812
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Technology BIPOLAR
Subcategory Other Regulators
Terminal Finish TIN LEAD
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code no
JESD-609 Code e0
Series Military, MIL-STD-883
Published 2009
Packaging Bulk
Operating Temperature -55°C~125°C TA
Physical
Number of Pins 3
Package / Case TO-257-3
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Lifecycle Status IN PRODUCTION (Last Updated: 1 month ago)
Factory Lead Time 22 Weeks
