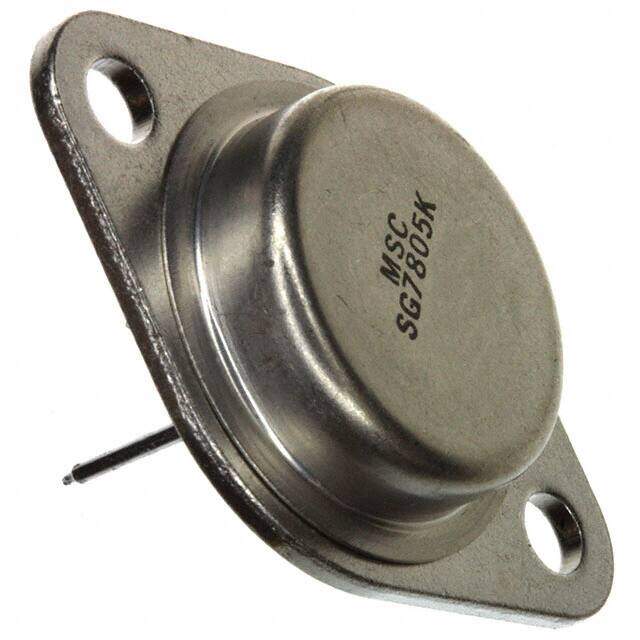

SG7805K
RoHS
/
Package TO-204AA, TO-3
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
SG7805 Bulk Through Hole Over Current Over Temperature voltage regulator linear 2V 1.5A -55C~125C TA
PDF
/
Buying Options
Total Price: USD $32.22
Unit Price: USD $32.21735
≥1 USD $32.21735
≥10 USD $26.43565
≥100 USD $25.60915
≥500 USD $24.78265
≥1000 USD $23.9571
Inventory: 25
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Exempt
RoHS Status Non-RoHS Compliant
Radiation Hardening Yes
Technical
Voltage Tolerance-Max 4%
Dropout Voltage1-Nom 2V
PSRR 68dB (120Hz)
Voltage Dropout (Max) 2.5V @ 500mA
Protection Features Over Current, Over Temperature
Number of Regulators 1
Voltage - Output (Min/Fixed) 5V
Output Voltage 1 5V
Accuracy 2 %
Control Features Current Limit, Enable
Quiescent Current 6mA
Output Configuration Positive
Max Output Current 1.5A
Output Type Fixed
Output Voltage 5V
Voltage - Input (Max) 35V
Qualification Status Not Qualified
Number of Outputs 1
Current - Supply (Max) 7mA
JESD-30 Code O-MBFM-P2
Pin Count 2
Base Part Number SG7805
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position BOTTOM
Technology BIPOLAR
Subcategory Other Regulators
Terminal Finish TIN LEAD
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code no
JESD-609 Code e0
Series Military, MIL-STD-883
Published 1999
Packaging Bulk
Operating Temperature -55°C~125°C TA
Physical
Package / Case TO-204AA, TO-3
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Lifecycle Status IN PRODUCTION (Last Updated: 3 weeks ago)
Factory Lead Time 10 Weeks
