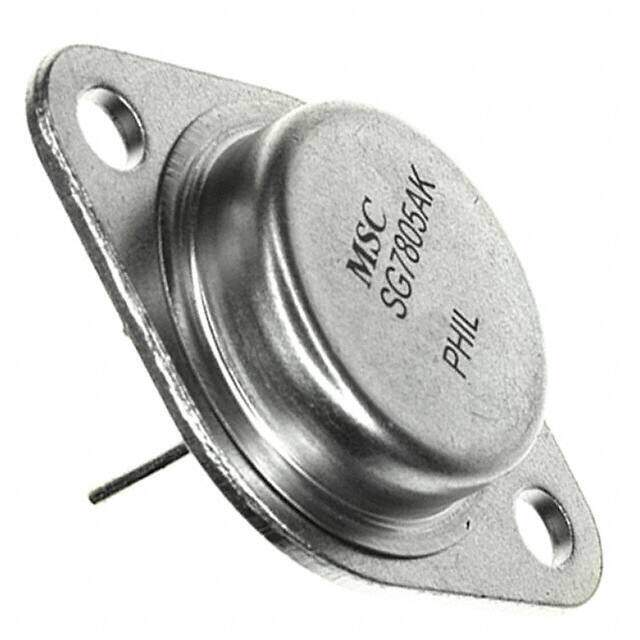

SG7805AK-883B
RoHS
/
Package TO-204AA, TO-3
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
SG7805 Bulk Through Hole Over Current Over Temperature voltage regulator linear 2V 1.5A -55C~125C TA
PDF
/
Inventory: 5060
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Lifecycle Status IN PRODUCTION (Last Updated: 1 month ago)
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case TO-204AA, TO-3
Number of Pins 3
Technical
Operating Temperature -55°C~125°C TA
Packaging Bulk
Published 2009
Series Military, MIL-STD-883
JESD-609 Code e0
Pbfree Code no
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish TIN LEAD
Subcategory Other Regulators
Technology BIPOLAR
Terminal Position BOTTOM
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number SG7805
Pin Count 2
JESD-30 Code O-MBFM-P2
Current - Supply (Max) 7mA
Number of Outputs 1
Qualification Status Not Qualified
Voltage - Input (Max) 50V
Output Voltage 5V
Output Type Fixed
Max Output Current 1.5A
Output Configuration Positive
Quiescent Current 6mA
Control Features Current Limit, Enable
Accuracy 1.5 %
Output Voltage 1 5V
Number of Regulators 1
Protection Features Over Current, Over Temperature
Voltage Dropout (Max) 2.5V @ 500mA
PSRR 68dB (120Hz)
Dropout Voltage 2V
Dropout Voltage1-Nom 2V
Min Current Limit 1.5A
Compliance
Radiation Hardening Yes
RoHS Status Non-RoHS Compliant
