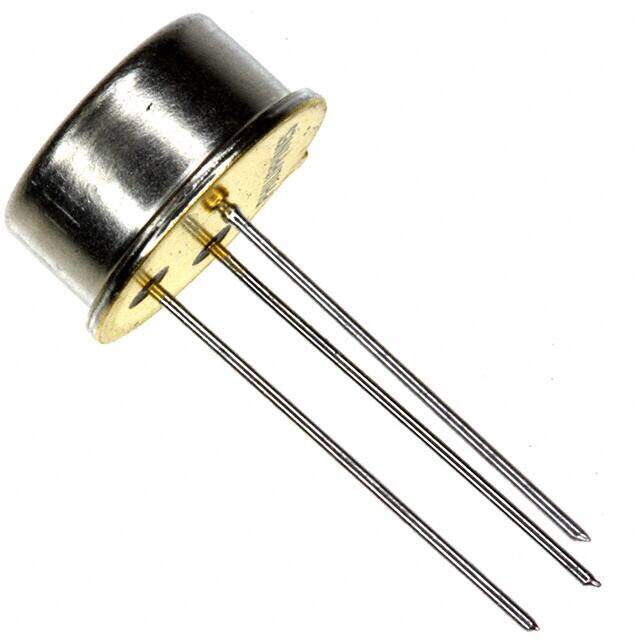

SG137T
RoHS
/
Package TO-205AD, TO-39-3 Metal Can
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
SG137 Bulk Through Hole Over Current Over Temperature Over Voltage voltage regulator linear 3V 1.5A -55C~125C
PDF
/
Buying Options
Total Price: USD $67.6
Unit Price: USD $67.60295
≥1 USD $67.60295
≥10 USD $55.46955
≥100 USD $53.7358
≥500 USD $52.00205
≥1000 USD $50.26925
Inventory: 948
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Exempt
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Technical
Load Regulation-Max(%) 1%
Output Voltage Accuracy 1 %
Min Current Limit 500mA
Dropout Voltage1-Nom 3V
Reference Voltage -1.275V
PSRR 60dB ~ 77dB (120Hz)
Protection Features Over Current, Over Temperature, Over Voltage
Min Input Voltage -2.3V
Number of Regulators 1
Voltage - Output (Min/Fixed) -1.25V
Accuracy 1 %
Output Configuration Negative
Max Output Current 1.5A
Output Type Adjustable
Output Voltage -37V
Voltage - Input (Max) -36V
Number of Outputs 1
Base Part Number SG137
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position BOTTOM
Technology BIPOLAR
Subcategory Other Regulators
Terminal Finish Tin/Lead (Sn/Pb)
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Pbfree Code no
JESD-609 Code e0
Published 2009
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Number of Pins 3
Package / Case TO-205AD, TO-39-3 Metal Can
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Lifecycle Status IN PRODUCTION (Last Updated: 3 weeks ago)
