MIC5528-3.3YMT-TR
RoHS
RoHS compliant

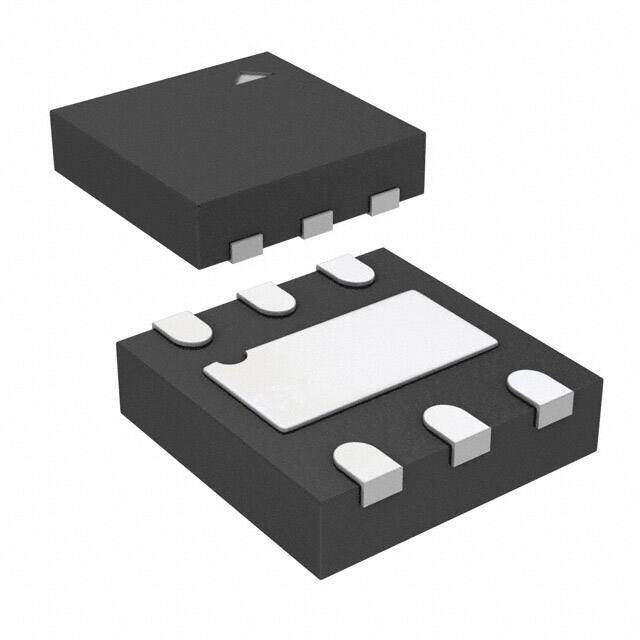

RoHS compliantPackage 6-UFDFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
MIC5528 Tape & Reel (TR) Surface Mount Over Current Over Temperature voltage regulator linear 260mV 0.4mm 500mA -40C~125C
PDF
/
Buying Options
Total Price: USD $0.22
Unit Price: USD $0.22
≥1 USD $0.22
≥10 USD $0.1936
≥100 USD $0.176
Inventory: 30158
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 6-UFDFN Exposed Pad
Number of Pins 6
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
JESD-609 Code e4
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 6
ECCN Code EAR99
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Packing Method TAPE AND REEL
Technology CMOS
Terminal Position DUAL
Terminal Form NO LEAD
Number of Functions 1
Terminal Pitch 0.4mm
Base Part Number MIC5528
Current - Supply (Max) 65μA
Number of Outputs 1
Voltage - Input (Max) 5.5V
Output Voltage 3.3V
Output Type Fixed
Operating Supply Current 42μA
Output Configuration Positive
Current - Output 500mA
Control Features Enable
Output Voltage 1 3.3V
Number of Regulators 1
Min Input Voltage 2.5V
Protection Features Over Current, Over Temperature
Current - Quiescent (Iq) 55μA
Voltage Dropout (Max) 0.5V @ 500mA
PSRR 70dB ~ 60dB (100Hz ~ 1kHz)
Dropout Voltage 260mV
Dropout Voltage1-Nom 0.26V
Power Supply Rejection Ratio (PSRR) 70dB
Min Current Limit 525mA
Nominal Output Voltage 3.3V
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
