MIC5502-2.8YMT-TZ
RoHS
RoHS compliant

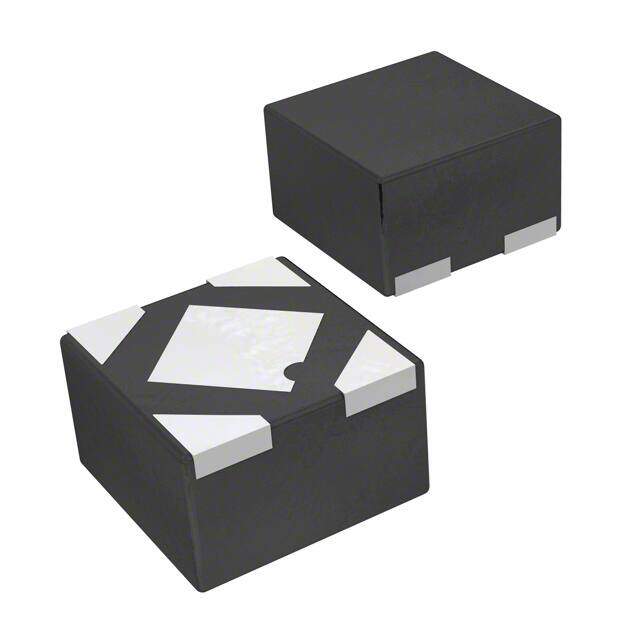

RoHS compliantPackage 4-UDFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
MIC5502 Cut Tape (CT) Surface Mount Over Current Over Temperature voltage regulator linear 160mV 0.6mm 300mA -40C~125C
PDF
/
Buying Options
Total Price: USD $0.19
Unit Price: USD $0.1936
≥1 USD $0.1936
≥10 USD $0.1584
≥100 USD $0.1408
Inventory: 1489
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 4-UDFN Exposed Pad
Technical
Operating Temperature -40°C~125°C
Packaging Cut Tape (CT)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
Packing Method TAPE AND REEL
Technology CMOS
Terminal Position DUAL
Terminal Form NO LEAD
Number of Functions 1
Terminal Pitch 0.65mm
Base Part Number MIC5502
JESD-30 Code S-PDSO-N4
Current - Supply (Max) 65μA
Number of Outputs 1
Voltage - Input (Max) 5.5V
Output Voltage 2.8V
Output Type Fixed
Output Configuration Positive
Current - Output 300mA
Control Features Enable
Output Voltage 1 2.8V
Number of Regulators 1
Min Input Voltage 2.5V
Protection Features Over Current, Over Temperature
Current - Quiescent (Iq) 55μA
Voltage Dropout (Max) 0.38V @ 300mA
PSRR 60dB (1kHz)
Dropout Voltage 160mV
Dropout Voltage1-Nom 0.16V
Voltage Tolerance-Max 3%
Min Current Limit 400mA
Input Voltage Absolute-Max 6V
Dimensions
Height Seated (Max) 0.6mm
Compliance
RoHS Status ROHS3 Compliant
