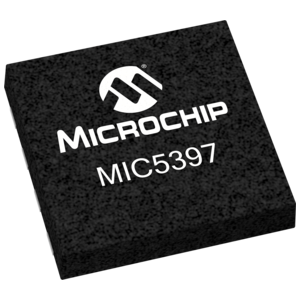

MIC5397-GPYMT-T5
RoHS
RoHS compliant
RoHS compliantPackage 8-XFDFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
MIC5397 Tape & Reel (TR) Surface Mount Over Current Over Temperature voltage regulator linear 1.854V 1.6mm 300mA 300mA -40C~125C
PDF
/
Inventory: 2805
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mounting Type Surface Mount
Package / Case 8-XFDFN Exposed Pad
Surface Mount YES
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2016
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
Technology CMOS
Terminal Position DUAL
Terminal Form NO LEAD
Number of Functions 1
Terminal Pitch 0.4mm
Base Part Number MIC5397
JESD-30 Code R-PDSO-N8
Current - Supply (Max) 130μA
Number of Outputs 2
Voltage - Input (Max) 5.5V
Output Type Fixed
Output Configuration Positive
Current - Output 300mA 300mA
Control Features Enable
Output Voltage 1 1.8V
Input Voltage (Min) 4V
Voltage - Output (Min/Fixed) 1.8V 3V
Number of Regulators 2
Protection Features Over Current, Over Temperature
Current - Quiescent (Iq) 55μA
Voltage Dropout (Max) 0.38V @ 300mA 0.38V @ 300mA
PSRR 60dB (1kHz)
Output Voltage1-Max 1.854V
Output Voltage1-Min 1.746V
Output Voltage 2 3V
Output Voltage2-Max 3.09V
Dimensions
Height Seated (Max) 0.6mm
Length 1.6mm
Compliance
RoHS Status ROHS3 Compliant
