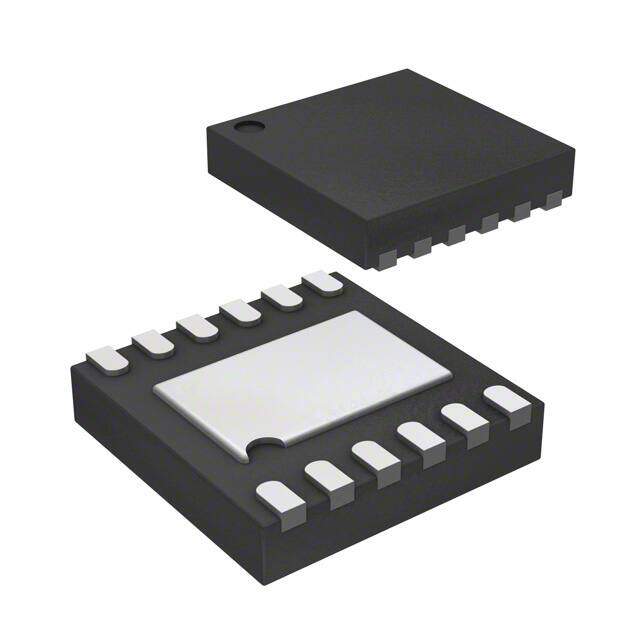

MIC5314-FCYMT-TR image
Favorite

MIC5314-FCYMT-TR

Microchip Technology
RoHS
RoHS RoHS compliant
Package 12-UFDFN Exposed Pad, 12-TMLF?
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description Obsolete Lead Free Positive 2008 Linear Voltage Regulator IC -40C~125C 300mA 85mV
PDF
/
Inventory: 3384
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant

Technical

Min Current Limit 350mA
Min Output Voltage 1V
Dropout Voltage 85mV
PSRR 65dB ~ 40dB (1kHz ~ 20kHz)
Max Input Voltage 5.5V
Voltage Dropout (Max) 0.2V @ 300mA 0.2V @ 300mA
Current - Quiescent (Iq) 12μA
Protection Features Over Current, Over Temperature
Min Input Voltage 1.7V
Number of Regulators 2
Voltage - Output (Min/Fixed) 1V 1.5V
Control Features Enable, Power On Reset
Current - Output 300mA 300mA
Output Configuration Positive
Max Output Current 300mA
Output Type Fixed
Output Voltage 1V
Voltage - Input (Max) 5.5V
Base Part Number MIC5314
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Published 2008
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Supplier Device Package 12-TMLF? (2.5x2.5)
Number of Pins 12
Package / Case 12-UFDFN Exposed Pad, 12-TMLF?
Mounting Type Surface Mount
Mount Surface Mount
