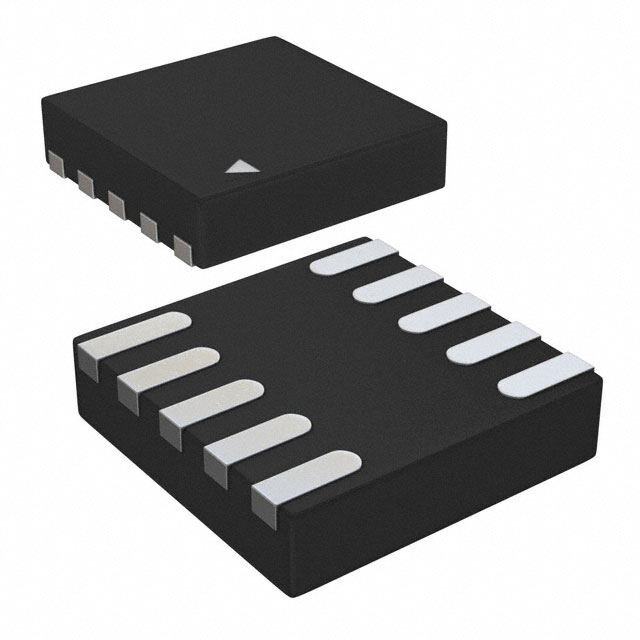

MIC5313-FFYMT-TR
RoHS
RoHS compliant
RoHS compliantPackage 10-UFDFN, 10-TMLF?
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
MIC5313 Tape & Reel (TR) Surface Mount Over Current Over Temperature voltage regulator linear 85mV 300mA -40C~125C
PDF
/
Buying Options
Total Price: USD $0.64
Unit Price: USD $0.6424
≥1 USD $0.6424
≥10 USD $0.55264
≥100 USD $0.518496
≥500 USD $0.469304
Inventory: 1427
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 10-UFDFN, 10-TMLF?
Number of Pins 10
Supplier Device Package 10-TMLF? (2x2)
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2008
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Base Part Number MIC5313
Voltage - Input (Max) 5.5V
Output Voltage 1.5V
Output Type Fixed
Max Output Current 300mA
Output Configuration Positive
Current - Output 300mA 300mA
Control Features Enable
Voltage - Output (Min/Fixed) 1.5V 1.5V
Number of Regulators 2
Min Input Voltage 1.7V
Protection Features Over Current, Over Temperature
Current - Quiescent (Iq) 12μA
Voltage Dropout (Max) 0.2V @ 300mA 0.2V @ 300mA
Max Input Voltage 5.5V
PSRR 65dB ~ 40dB (1kHz ~ 20kHz)
Dropout Voltage 85mV
Min Output Voltage 1.5V
Min Current Limit 350mA
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
