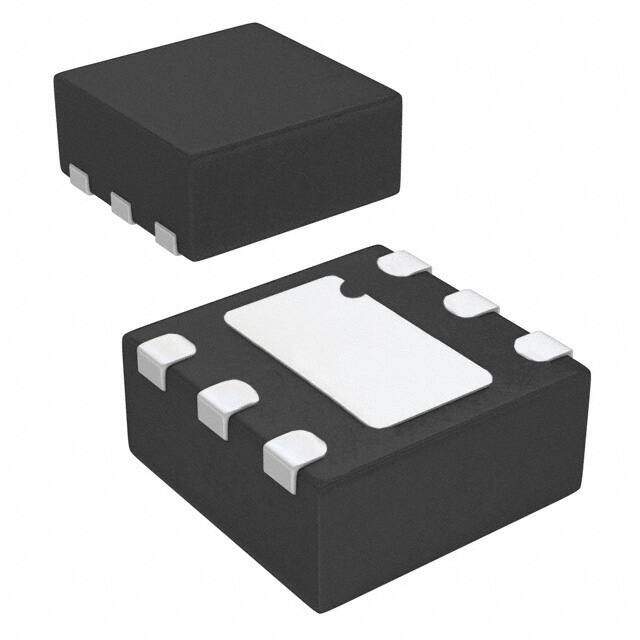

MIC37122YMT-TR
RoHS
RoHS compliant
RoHS compliantPackage 6-VDFN Exposed Pad, 6-TMLF?
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
MIC37122 Tape & Reel (TR) Surface Mount Over Current Over Temperature voltage regulator linear 230mV 850mum 1A -40C~125C
PDF
/
Inventory: 7214
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Plating Gold
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 6-VDFN Exposed Pad, 6-TMLF?
Number of Pins 6
Supplier Device Package 6-TMLF? (2x2)
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2011
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Base Part Number MIC37122
Number of Outputs 1
Voltage - Input (Max) 5.5V
Output Voltage 1V
Output Type Adjustable
Max Output Current 1A
Polarity Positive
Output Configuration Positive
Current - Output 1A
Quiescent Current 500μA
Control Features Enable
Accuracy 2 %
Max Output Voltage 5V
Voltage - Output (Min/Fixed) 1V
Number of Regulators 1
Min Input Voltage 2.375V
Protection Features Over Current, Over Temperature
Current - Quiescent (Iq) 500μA
Voltage Dropout (Max) 0.4V @ 1A
Max Input Voltage 5.5V
Reference Voltage 1.025V
Dropout Voltage 230mV
Min Output Voltage 1V
Voltage - Output (Max) 5V
Min Current Limit 1.2A
Dimensions
Height 850μm
Length 2mm
Width 2mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
