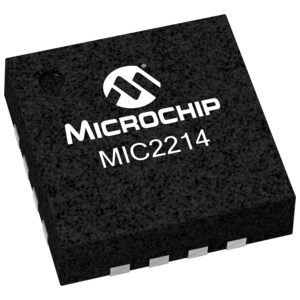

MIC2214-AAYML-T5 image
Favorite
MIC2214-AAYML-T5 image
Favorite

MIC2214-AAYML-T5

Microchip Technology
RoHS
RoHS RoHS compliant
Package 16-VQFN Exposed Pad, 16-MLF?
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description MIC2214 Tape & Reel (TR) Surface Mount Over Current Over Temperature voltage regulator linear 120mV 4mm 150mA 300mA -40C~125C
PDF
/
Buying Options
Total Price: USD $1.03
Unit Price: USD $1.029314
≥1 USD $1.029314
≥10 USD $0.870453
≥30 USD $0.783801
≥100 USD $0.685334
≥500 USD $0.642008
≥1000 USD $0.622315
Inventory: 1761
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Width 4mm
Length 4mm
Height Seated (Max) 1mm

Technical

Min Current Limit 300mA
Dropout Voltage 120mV
PSRR 60dB ~ 40dB (1KHz ~ 20kHz)
Voltage Dropout (Max) 0.25V @ 150mA 0.42V @ 300mA
Current - Quiescent (Iq) 80μA
Protection Features Over Current, Over Temperature
Number of Regulators 2
Voltage - Output (Min/Fixed) 1.25V
Control Features Enable, Power On Reset
Current - Output 150mA 300mA
Output Configuration Positive
Output Type Adjustable
Output Voltage 5.5V
Number of Outputs 2
JESD-30 Code S-XQCC-N16
Base Part Number MIC2214
Terminal Pitch 0.65mm
Number of Functions 1
Terminal Form NO LEAD
Terminal Position QUAD
Number of Terminations 16
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Published 2005
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Package / Case 16-VQFN Exposed Pad, 16-MLF?
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 10 Weeks
