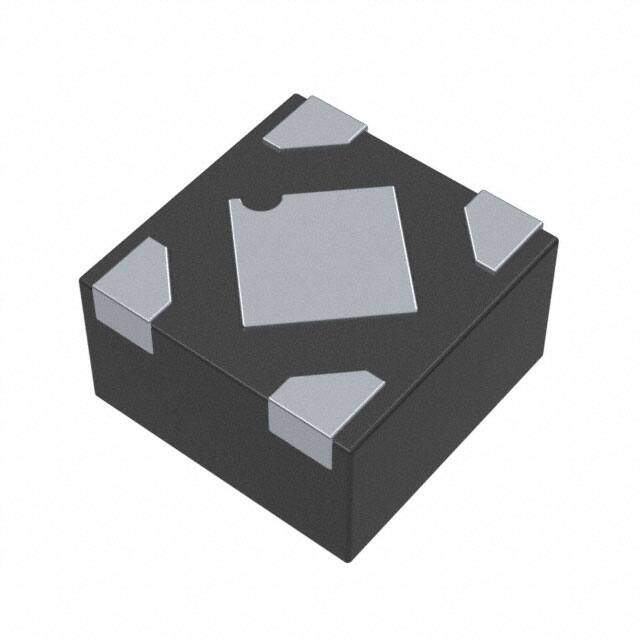

MCP1811BT-025/HCA image
Favorite
MCP1811BT-025/HCA image
Favorite

MCP1811BT-025/HCA

Microchip Technology
RoHS
RoHS RoHS compliant
Package /
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description FIXED Tape & Reel (TR) ROHS3Compliant DUAL voltage regulator linear 2.6V 1mm 0.15A 85C
PDF
/
Inventory: 5557
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Width 1mm
Length 1mm
Height Seated (Max) 0.6mm

Technical

Operating Temperature TJ-Min -40°C
Adjustability FIXED
Input Voltage Absolute-Max 6V
Operating Temperature TJ-Max 85°C
Dropout Voltage1-Max 0.6V
Output Current1-Max 0.15A
Voltage Tolerance-Max 4%
Regulator Type FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Output Voltage1-Min 2.4V
Output Voltage1-Max 2.6V
Dropout Voltage1-Nom 0.4V
Input Voltage (Max) 5.5V
Input Voltage (Min) 3.1V
Output Voltage 1 2.5V
Number of Outputs 1
JESD-30 Code S-PDSO-N4
Terminal Pitch 0.65mm
Number of Functions 1
Terminal Form NO LEAD
Terminal Position DUAL
Technology CMOS
Packing Method TR
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Packaging Tape & Reel (TR)

Physical

Surface Mount YES

Supply Chain

Factory Lead Time 7 Weeks
