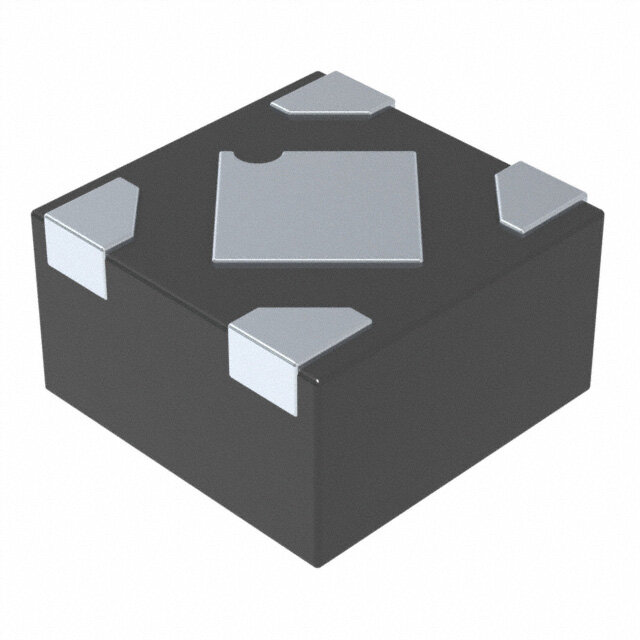

MCP1811AT-018/HCA
RoHS
RoHS compliant
RoHS compliantPackage 4-UDFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
FIXED Tape & Reel (TR) Surface Mount ROHS3Compliant voltage regulator linear 1.872V 1mm 0.15A 85C
PDF
/
Inventory: 2319
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mounting Type Surface Mount
Package / Case 4-UDFN Exposed Pad
Surface Mount YES
Technical
Packaging Tape & Reel (TR)
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
Terminal Finish Matte Tin (Sn)
Packing Method TR
Technology CMOS
Terminal Position DUAL
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Terminal Pitch 0.65mm
Time@Peak Reflow Temperature-Max (s) 30
JESD-30 Code S-PDSO-N4
Number of Outputs 1
Output Voltage 1 1.8V
Input Voltage (Min) 2.4V
Input Voltage (Max) 5.5V
Dropout Voltage1-Nom 0.4V
Output Voltage1-Max 1.872V
Output Voltage1-Min 1.728V
Regulator Type FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Voltage Tolerance-Max 4%
Output Current1-Max 0.15A
Dropout Voltage1-Max 0.6V
Operating Temperature TJ-Max 85°C
Input Voltage Absolute-Max 6V
Adjustability FIXED
Operating Temperature TJ-Min -40°C
Dimensions
Height Seated (Max) 0.6mm
Length 1mm
Width 1mm
Compliance
RoHS Status ROHS3 Compliant
