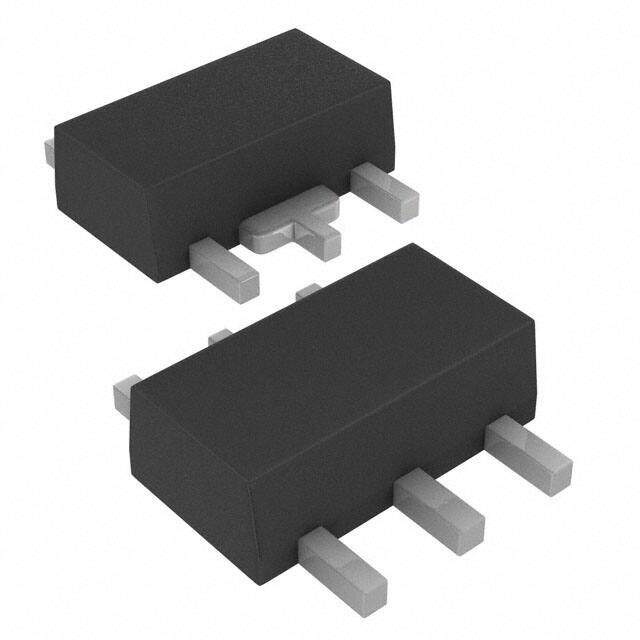

MCP1804T-3002I/MT
RoHS
RoHS compliant
RoHS compliantPackage SOT-89-5/6
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
MCP1804 Digi-Reel? Surface Mount Over Current Over Temperature voltage regulator linear 1.3V 150mA 500mW -40C~85C
PDF
/
Buying Options
Total Price: USD $0.84
Unit Price: USD $0.836
≥1 USD $0.836
≥10 USD $0.6864
≥100 USD $0.6336
Inventory: 166
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Technical
Input Voltage Absolute-Max 30V
Voltage Tolerance-Max 2%
Dropout Voltage1-Nom 1.3V
Dropout Voltage 1.3V
PSRR 50dB (1kHz)
Voltage Dropout (Max) 1.7V @ 100mA
Current - Quiescent (Iq) 105μA
Protection Features Over Current, Over Temperature
Min Input Voltage 2V
Number of Regulators 1
Output Voltage 1 3V
Accuracy 2 %
Control Features Enable
Quiescent Current 105μA
Current - Output 150mA
Output Configuration Positive
Output Type Fixed
Output Voltage 3V
Voltage - Input (Max) 28V
Number of Outputs 1
Current - Supply (Max) 125μA
Pin Count 5
Base Part Number MCP1804
Time@Peak Reflow Temperature-Max (s) 40
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form FLAT
Terminal Position DUAL
Technology CMOS
Max Power Dissipation 500mW
Packing Method TAPE AND REEL
Subcategory Other Regulators
Terminal Finish Matte Tin (Sn) - annealed
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Pbfree Code yes
JESD-609 Code e3
Published 2011
Packaging Digi-Reel?
Operating Temperature -40°C~85°C
Physical
Number of Pins 5
Package / Case SOT-89-5/6
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 9 Weeks
