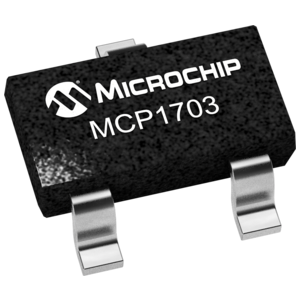

MCP1703T-3002E/CBVAO
RoHS
RoHS compliant
RoHS compliantPackage TO-236-3, SC-59, SOT-23-3
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
MCP1703 Tape & Reel (TR) Surface Mount Over Current Over Temperature Short Circuit voltage regulator linear 3.09V 2.9mm 250mA -40C~125C
PDF
/
Buying Options
Total Price: USD $1.51
Unit Price: USD $1.505615
≥1 USD $1.505615
≥10 USD $1.420395
≥100 USD $1.339992
≥500 USD $1.264141
≥1000 USD $1.192585
Inventory: 1238
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 2.9mm
Technical
Output Voltage1-Max 3.09V
PSRR 35dB (100Hz)
Voltage Dropout (Max) 0.975V @ 250mA
Current - Quiescent (Iq) 5μA
Protection Features Over Current, Over Temperature, Short Circuit
Number of Regulators 1
Voltage - Output (Min/Fixed) 3V
Input Voltage (Min) 2.7V
Output Voltage 1 3V
Current - Output 250mA
Output Configuration Positive
Output Type Fixed
Voltage - Input (Max) 16V
JESD-30 Code R-PDSO-G3
Base Part Number MCP1703
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.95mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form GULL WING
Terminal Position DUAL
Technology CMOS
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Automotive, AEC-Q100
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Surface Mount YES
Package / Case TO-236-3, SC-59, SOT-23-3
Mounting Type Surface Mount
Alternative Model
