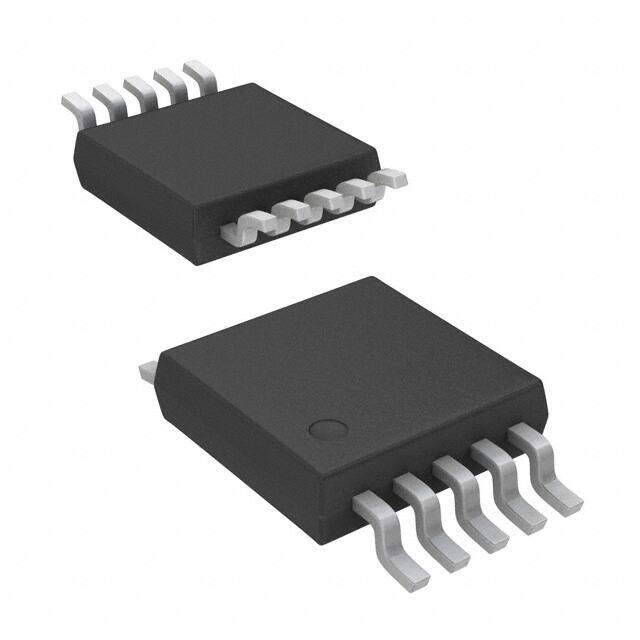

LX8221-GIDU
RoHS
/
Package 10-TFSOP, 10-MSOP (0.118, 3.00mm Width)
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
Obsolete Lead Free Positive GULL WING voltage regulator linear -40C~85C 150mA 150mA 3mm 250mV
PDF
/
Buying Options
Total Price: USD $3.06
Unit Price: USD $3.0624
≥1 USD $3.0624
Inventory: 1629
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Length 3mm
Height Seated (Max) 1.1mm
Technical
Voltage - Output (Max) 5.6V
Dropout Voltage 250mV
Reference Voltage 1.187V
PSRR 50dB (120Hz)
Voltage Dropout (Max) 0.4V @ 150mA 0.4V @ 150mA
Current - Quiescent (Iq) 440μA
Protection Features Over Current, Over Temperature
Min Input Voltage 2.5V
Number of Regulators 2
Voltage - Output (Min/Fixed) 1.175V 3V
Output Voltage 1 3V
Accuracy 1 %
Control Features Enable
Current - Output 150mA 150mA
Output Configuration Positive
Output Type Adjustable (Fixed)
Output Voltage 3V
Voltage - Input (Max) 6V
Number of Outputs 2
Pin Count 10
Base Part Number LX8221
Time@Peak Reflow Temperature-Max (s) 40
Terminal Pitch 0.5mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Technology CMOS
Terminal Finish MATTE TIN
ECCN Code EAR99
Number of Terminations 10
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e3
Published 2006
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Number of Pins 10
Package / Case 10-TFSOP, 10-MSOP (0.118, 3.00mm Width)
Mounting Type Surface Mount
Mount Surface Mount
