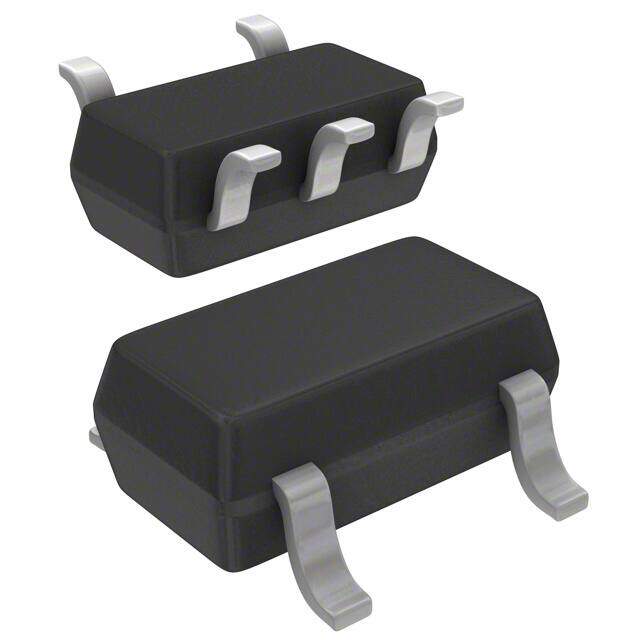

SPX5205M5-L-1-8 image
Favorite
SPX5205M5-L-1-8 image
Favorite

SPX5205M5-L-1-8

MaxLinear, Inc.
RoHS
RoHS RoHS compliant
Package SC-74A, SOT-753
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description Bulk Surface Mount Over Current Over Temperature Reverse Polarity RoHS Compliant voltage regulator linear 0.35V 2.9mm 150mA -40C~85C
PDF
/
Buying Options
Total Price: USD $0.37
Unit Price: USD $0.36759
≥1 USD $0.36759
≥10 USD $0.346778
≥100 USD $0.327154
≥500 USD $0.308639
≥1000 USD $0.291168
Inventory: 3005
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Length 2.9mm

Technical

Dropout Voltage1-Max 0.35V
Current - Quiescent (Iq) 5μA
Protection Features Over Current, Over Temperature, Reverse Polarity
Number of Regulators 1
Voltage - Output (Min/Fixed) 1.8V
Input Voltage (Min) 2.5V
Output Voltage 1 1.8V
Control Features Enable
Current - Output 150mA
Output Configuration Positive
Output Type Fixed
Voltage - Input (Max) 16V
Qualification Status Not Qualified
Current - Supply (Max) 2.5mA
JESD-30 Code R-PDSO-G5
Time@Peak Reflow Temperature-Max (s) 40
Terminal Pitch 0.95mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
JESD-609 Code e3
Packaging Bulk
Operating Temperature -40°C~85°C

Physical

Surface Mount YES
Package / Case SC-74A, SOT-753
Mounting Type Surface Mount
