SPX1585AT-L
RoHS
RoHS compliant

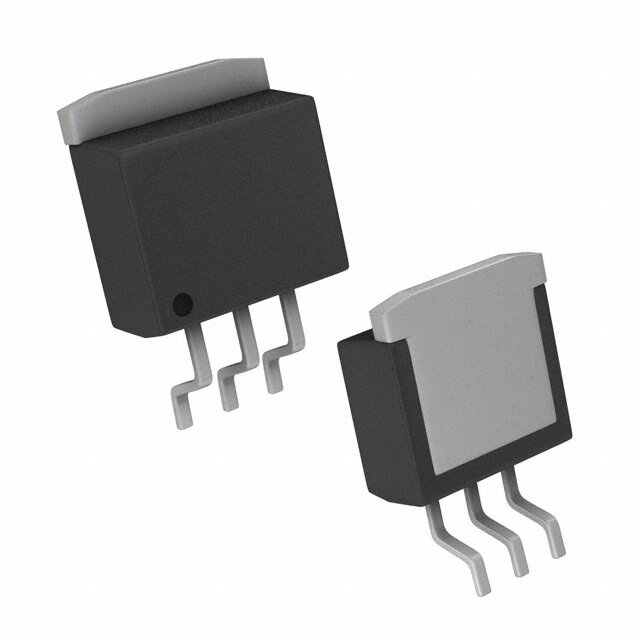

RoHS compliantPackage TO-263-4, D2Pak (3 Leads + Tab), TO-263AA
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
Tube Surface Mount Over Current Over Temperature Reverse Polarity Transient Voltage RoHS Compliant voltage regulator linear 5.75V 4.826mm 5A -45C~125C
PDF
/
Buying Options
Total Price: USD $1.38
Unit Price: USD $1.3832
≥1 USD $1.3832
≥10 USD $1.13525
≥100 USD $1.09915
≥500 USD $1.064
≥1000 USD $1.02885
Inventory: 1165
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 8.4074mm
Height Seated (Max) 4.826mm
Technical
Input-Output Voltage Differential-Max 5.75V
Voltage - Output (Max) 8.8V
Voltage Dropout (Max) 1.2V @ 5A
Protection Features Over Current, Over Temperature, Reverse Polarity, Transient Voltage
Number of Regulators 1
Voltage - Output (Min/Fixed) 1.2V
Current - Output 5A
Output Configuration Positive
Output Type Adjustable
Voltage - Input (Max) 10V
Qualification Status Not Qualified
JESD-30 Code R-PSSO-G3
Time@Peak Reflow Temperature-Max (s) 40
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) 245
Terminal Form GULL WING
Terminal Position SINGLE
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Discontinued
JESD-609 Code e3
Packaging Tube
Operating Temperature -45°C~125°C
Physical
Surface Mount YES
Package / Case TO-263-4, D2Pak (3 Leads + Tab), TO-263AA
Mounting Type Surface Mount
