SPX1582T5-L
RoHS
RoHS compliant

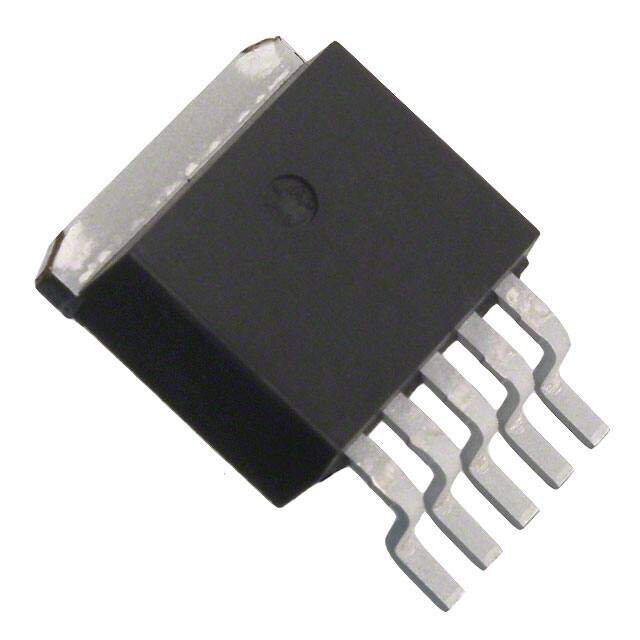

RoHS compliantPackage TO-263-6, D2Pak (5 Leads + Tab), TO-263BA
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
Tube Surface Mount Over Current Over Temperature Reverse Polarity Transient Voltage RoHS Compliant voltage regulator linear 6V 5.08mm 3A 0C~125C
PDF
/
Buying Options
Total Price: USD $17.01
Unit Price: USD $17.0145
≥1 USD $17.0145
≥10 USD $13.9612
≥100 USD $13.5242
≥500 USD $13.08815
≥1000 USD $12.6521
Inventory: 3999
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 5.08mm
Technical
Output Voltage1-Max 6V
PSRR 80dB (120Hz)
Voltage Dropout (Max) 0.5V @ 3A
Protection Features Over Current, Over Temperature, Reverse Polarity, Transient Voltage
Number of Regulators 1
Voltage - Output (Min/Fixed) 1.25V
Current - Output 3A
Output Configuration Positive
Output Type Adjustable
Voltage - Input (Max) 6V
Qualification Status Not Qualified
JESD-30 Code R-PSSO-G5
Time@Peak Reflow Temperature-Max (s) 40
Number of Functions 1
Peak Reflow Temperature (Cel) 245
Terminal Form GULL WING
Terminal Position SINGLE
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Discontinued
JESD-609 Code e3
Packaging Tube
Operating Temperature 0°C~125°C
Physical
Surface Mount YES
Package / Case TO-263-6, D2Pak (5 Leads + Tab), TO-263BA
Mounting Type Surface Mount
