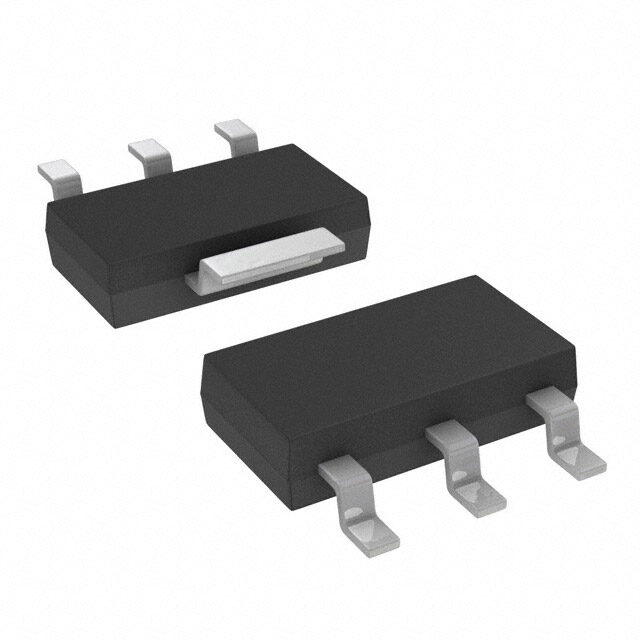

SPX1117M3-L image
Favorite
SPX1117M3-L image
Favorite

SPX1117M3-L

MaxLinear, Inc.
RoHS
RoHS RoHS compliant
Package TO-261-4, TO-261AA
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description Tube Surface Mount Over Current Over Temperature RoHS Compliant voltage regulator linear 4.8V 6.5mm 800mA -40C~125C
PDF
/
Buying Options
Total Price: USD $0.1
Unit Price: USD $0.09975
≥1 USD $0.09975
≥10 USD $0.0817
≥100 USD $0.0798
≥500 USD $0.07695
≥1000 USD $0.0741
Inventory: 162837
Minimum: 1
-
+

Technical Details

Physical

Mounting Type Surface Mount
Package / Case TO-261-4, TO-261AA
Surface Mount YES

Technical

Operating Temperature -40°C~125°C
Packaging Tube
JESD-609 Code e3
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Terminal Pitch 2.3mm
Time@Peak Reflow Temperature-Max (s) 40
JESD-30 Code R-PDSO-G4
Qualification Status Not Qualified
Voltage - Input (Max) 20V
Output Type Adjustable
Output Configuration Positive
Current - Output 800mA
Output Voltage 1 3.3V
Input Voltage (Min) 4.8V
Voltage - Output (Min/Fixed) 1.25V
Number of Regulators 1
Protection Features Over Current, Over Temperature
Current - Quiescent (Iq) 10mA
Voltage Dropout (Max) 1.3V @ 800mA
PSRR 70dB (120Hz)
Output Voltage1-Min 3.234V
Voltage - Output (Max) 15V

Dimensions

Length 6.5mm
Width 3.5mm

Compliance

RoHS Status RoHS Compliant
