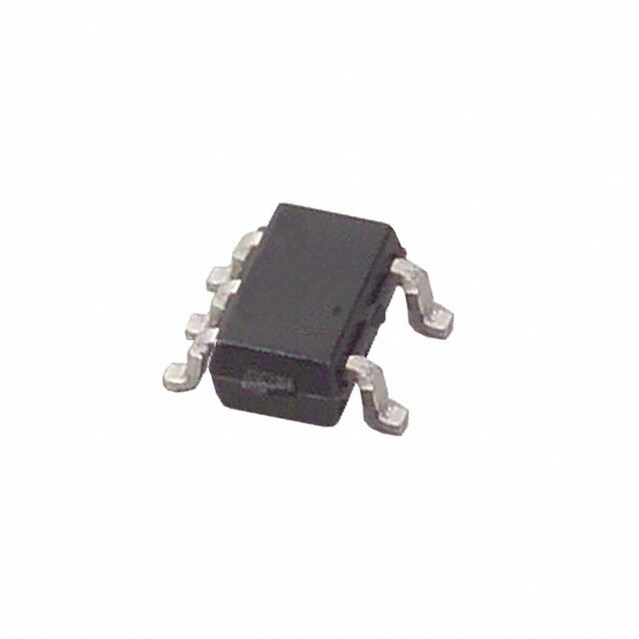

MAX8510EXK16+T
RoHS
/
Package /
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
Tape & Reel (TR) Surface Mount RoHS Compliant Matte Tin (Sn) voltage regulator linear 0.18V 2mm 120mA 247mW
PDF
/
Buying Options
Total Price: USD $7.71
Unit Price: USD $7.71115
≥1 USD $7.71115
≥10 USD $6.327
≥100 USD $6.1294
≥500 USD $5.9318
≥1000 USD $5.7342
Inventory: 1618
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Length 2mm
Technical
Voltage Reference 1.225V
Input Voltage Absolute-Max 7V
Min Current Limit 130mA
Voltage Tolerance-Max 3%
Dropout Voltage1-Nom 0.18V
Max Input Voltage 6V
Current - Input Bias 40μA
Min Input Voltage 2V
Output Voltage 1 1.6V
Voltage - Output 1.6V
Accuracy 2 %
Current - Output 120mA
Power Dissipation-Max 247mW
Polarity Positive
Max Output Current 120mA
Output Type Fixed
Number of Outputs 1
Pin Count 5
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Technology BICMOS
Packing Method TAPE AND REEL
Subcategory Other Regulators
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1
Pbfree Code yes
JESD-609 Code e3
Published 2012
Packaging Tape & Reel (TR)
Physical
Number of Pins 5
Mount Surface Mount
