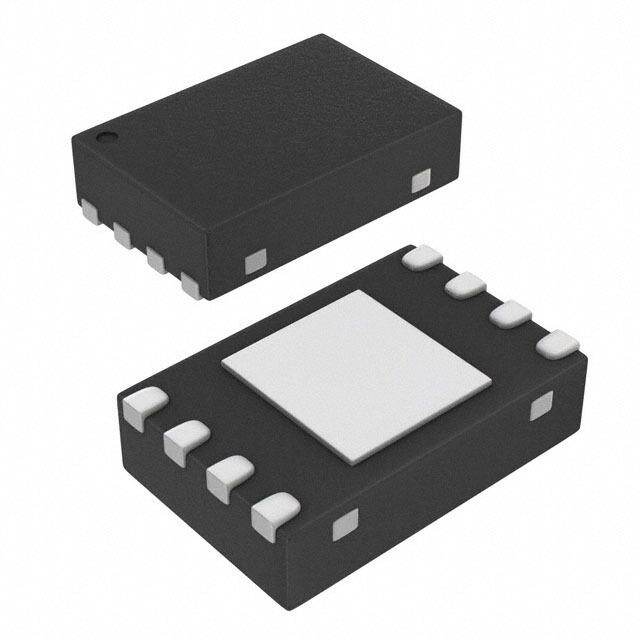

ISL9005AIRNZ-T image
Favorite
RoHS
/
Package DFN
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description Active Positive NO LEAD Not Qualified Linear Voltage Regulator IC 75dB 85C 300mA 3mm
PDF
/
Inventory: 7380
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 13 Weeks

Physical

Mount Surface Mount
Package / Case DFN
Number of Pins 8

Technical

Published 2002
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 2
Number of Terminations 8
ECCN Code EAR99
Terminal Finish Matte Tin (Sn) - annealed
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Subcategory Other Regulators
Packing Method TAPE AND REEL
Technology PMOS
Terminal Position DUAL
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Terminal Pitch 0.5mm
Time@Peak Reflow Temperature-Max (s) 40
Pin Count 8
Number of Outputs 1
Qualification Status Not Qualified
Output Type Fixed
Polarity Positive
Current - Output 300mA
Quiescent Current 50μA
Accuracy 0.8 %
Voltage - Output 3.3V
Output Voltage 1 3.3V
Min Input Voltage 2.3V
Max Input Voltage 6.5V
Dropout Voltage 200mV
Dropout Voltage1-Nom 0.2V
Power Supply Rejection Ratio (PSRR) 75dB
Min Current Limit 350mA
Voltage Reference 1V

Dimensions

Length 3mm
Width 2mm

Compliance

RoHS Status RoHS Compliant
