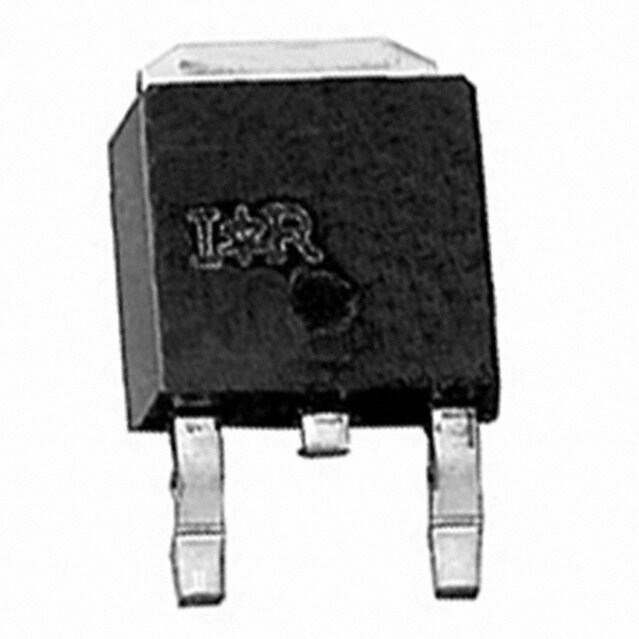

IRU1206-25CDTR
RoHS
/
Package TO-252-3
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
Contains Lead GULL WING Not Qualified 2005 Linear Voltage Regulator IC 125C 1A 6.604mm 500mV
PDF
/
Buying Options
Total Price: USD $22.76
Unit Price: USD $22.762
≥1 USD $22.762
≥10 USD $18.677
≥100 USD $18.0937
≥500 USD $17.50945
≥1000 USD $16.92615
Inventory: 11604
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Package / Case TO-252-3
Technical
Packaging Tape & Reel (TR)
Published 2005
JESD-609 Code e0
Number of Terminations 2
ECCN Code EAR99
Terminal Finish TIN LEAD
Max Operating Temperature 125°C
Min Operating Temperature 0°C
Subcategory Other Regulators
Packing Method TAPE AND REEL
Technology BIPOLAR
Terminal Position SINGLE
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 245
Number of Functions 1
Terminal Pitch 2.3mm
Reach Compliance Code unknown
Time@Peak Reflow Temperature-Max (s) 30
Pin Count 3
JESD-30 Code R-PSSO-G2
Number of Outputs 1
Qualification Status Not Qualified
Current - Output 1A
Voltage - Output 2.5V
Output Voltage 1 2.5V
Input Voltage (Min) 3.5V
Number of Regulators 1
Dropout Voltage 500mV
Dropout Voltage1-Nom 0.5V
Regulator Type FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Min Current Limit 1.1A
Adjustability FIXED
Line Regulation-Max (%/V) 0.025%
Dimensions
Height Seated (Max) 2.38mm
Length 6.604mm
Width 6.096mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
