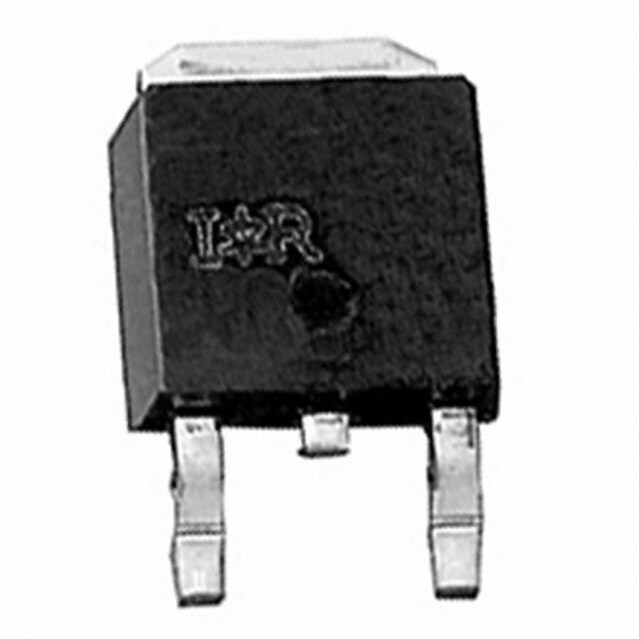

IRU1010-25CD
RoHS
/
Package TO-252-3
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
Contains Lead GULL WING Not Qualified 2005 Linear Voltage Regulator IC 125C 1A 6.604mm 7V
PDF
/
Buying Options
Total Price: USD $15.12
Unit Price: USD $15.1183
≥1 USD $15.1183
≥10 USD $12.4051
≥100 USD $12.0175
≥500 USD $11.6299
≥1000 USD $11.2423
Inventory: 11410
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Package / Case TO-252-3
Technical
Published 2005
JESD-609 Code e0
Moisture Sensitivity Level (MSL) 1
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Tin/Lead (Sn/Pb)
Max Operating Temperature 125°C
Min Operating Temperature 0°C
Subcategory Other Regulators
Technology BIPOLAR
Terminal Position SINGLE
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 245
Number of Functions 1
Terminal Pitch 2.285mm
Time@Peak Reflow Temperature-Max (s) 30
Pin Count 3
JESD-30 Code R-PSSO-G2
Number of Outputs 1
Qualification Status Not Qualified
Current - Output 1A
Voltage - Output 2.5V
Output Voltage 1 2.5V
Input Voltage (Min) 4.75V
Number of Regulators 1
Input Voltage (Max) 7V
Regulator Type FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Voltage Tolerance-Max 2%
Min Current Limit 1.1A
Input Voltage Absolute-Max 7V
Adjustability FIXED
Line Regulation-Max (%/V) 0.007%
Dimensions
Height Seated (Max) 2.49mm
Length 6.604mm
Width 6.096mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
