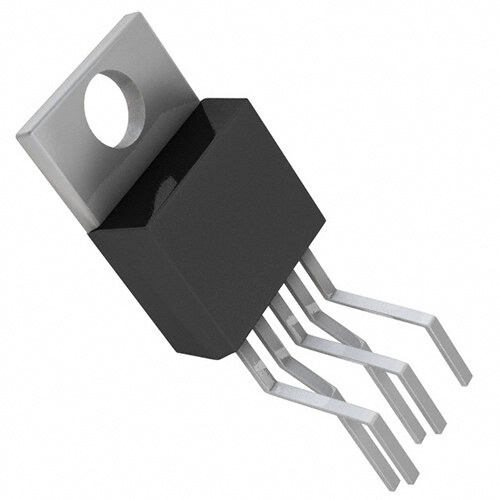

TLE4276V50 image
Favorite
TLE4276V50 image
Favorite
RoHS
/
Package TO-220-5
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description Bulk RoHS Compliant MATTE TIN ZIG-ZAG voltage regulator linear 250mV 400mA 150C
PDF
/
Inventory: 4415
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Package / Case TO-220-5
Surface Mount NO
Number of Pins 5

Technical

Packaging Bulk
JESD-609 Code e3
Moisture Sensitivity Level (MSL) 1
Number of Terminations 5
ECCN Code EAR99
Terminal Finish MATTE TIN
Max Operating Temperature 150°C
Min Operating Temperature -40°C
Subcategory Other Regulators
Technology BIPOLAR
Terminal Position ZIG-ZAG
Terminal Form THROUGH-HOLE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 3
Number of Outputs 1
Qualification Status Not Qualified
Output Type Fixed
Max Output Current 400mA
Polarity Positive
Current - Output 400mA
Quiescent Current 100μA
Accuracy 4 %
Voltage - Output 5V
Output Voltage 1 5V
Min Input Voltage 5.5V
Current - Input Bias 100μA
Max Input Voltage 40V
Halogen Free Halogen Free
Dropout Voltage 250mV
Dropout Voltage1-Nom 0.5V
Voltage Tolerance-Max 4%
Min Current Limit 400mA
Voltage Reference 2.5V

Compliance

RoHS Status RoHS Compliant
Lead Free Contains Lead
