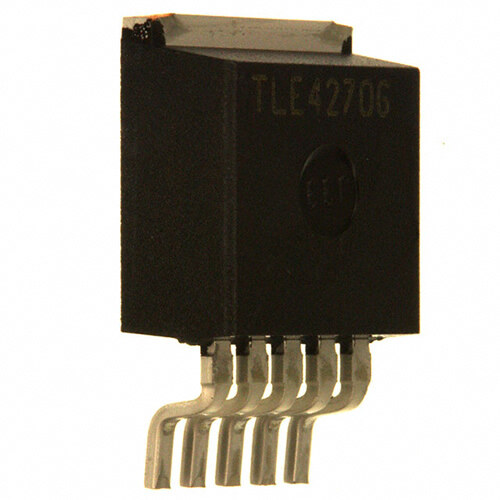

TLE4276GV85 image
Favorite
TLE4276GV85 image
Favorite
RoHS
/
Package TO-263-5
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description Bulk RoHS Compliant MATTE TIN SINGLE voltage regulator linear 250mV 4.4mm 400mA 150C
PDF
/
Buying Options
Total Price: USD $1.98
Unit Price: USD $1.977665
≥1 USD $1.977665
≥10 USD $1.86572
≥100 USD $1.760108
≥500 USD $1.660486
≥1000 USD $1.566496
Inventory: 1107
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Contains Lead
RoHS Status RoHS Compliant

Dimensions

Height Seated (Max) 4.4mm

Technical

Voltage Reference 2.5V
Min Current Limit 400mA
Voltage Tolerance-Max 4%
Dropout Voltage1-Nom 0.5V
Dropout Voltage 250mV
Halogen Free Halogen Free
Max Input Voltage 40V
Min Input Voltage 4.5V
Output Voltage 1 5V
Voltage - Output 8.5V
Accuracy 4 %
Quiescent Current 100μA
Current - Output 400mA
Polarity Positive
Max Output Current 400mA
Output Type Fixed
Qualification Status Not Qualified
Number of Outputs 1
Pin Count 4
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form GULL WING
Terminal Position SINGLE
Technology BIPOLAR
Subcategory Other Regulators
Min Operating Temperature -40°C
Max Operating Temperature 150°C
Terminal Finish MATTE TIN
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1
Pbfree Code yes
JESD-609 Code e3
Packaging Bulk

Physical

Number of Pins 5
Surface Mount YES
Package / Case TO-263-5
