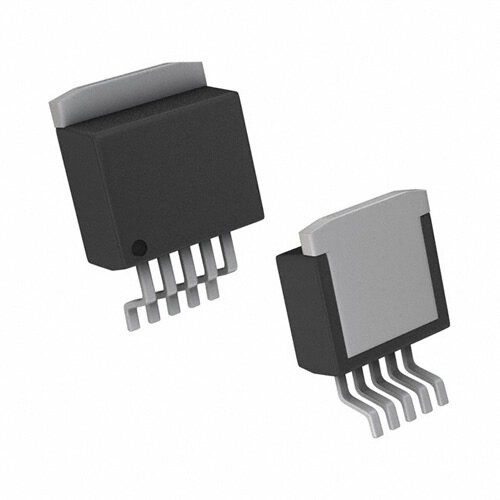

TLE4276GV10
RoHS
/
Package TO-263-5
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
Cut Tape (CT) RoHS Compliant MATTE TIN SINGLE voltage regulator linear 250mV 4.4mm 400mA 150C
PDF
/
Buying Options
Total Price: USD $0.95
Unit Price: USD $0.9504
≥1 USD $0.9504
Inventory: 1603
Minimum: 1
-
+
Technical Details
Physical
Package / Case TO-263-5
Surface Mount YES
Number of Pins 5
Technical
Packaging Cut Tape (CT)
JESD-609 Code e3
Pbfree Code yes
Moisture Sensitivity Level (MSL) 1
Number of Terminations 5
ECCN Code EAR99
Terminal Finish MATTE TIN
Max Operating Temperature 150°C
Min Operating Temperature -40°C
Subcategory Other Regulators
Technology BIPOLAR
Terminal Position SINGLE
Terminal Form GULL WING
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 4
Number of Outputs 1
Qualification Status Not Qualified
Output Type Fixed
Max Output Current 400mA
Current - Output 400mA
Quiescent Current 100μA
Accuracy 4 %
Voltage - Output 10V
Output Voltage 1 8.5V
Min Input Voltage 4.5V
Max Input Voltage 40V
Halogen Free Halogen Free
Dropout Voltage 250mV
Dropout Voltage1-Nom 0.5V
Voltage Tolerance-Max 4%
Min Current Limit 400mA
Voltage Reference 2.5V
Dimensions
Height Seated (Max) 4.4mm
Compliance
RoHS Status RoHS Compliant
Lead Free Contains Lead
