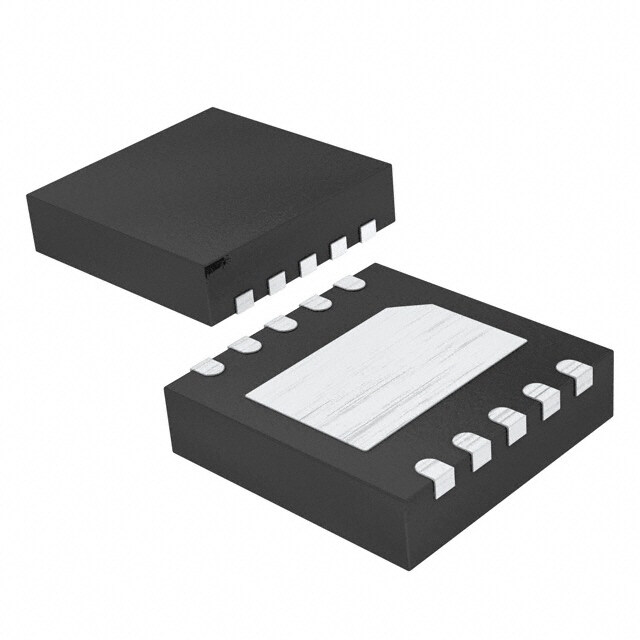

IFX1763LDVXUMA1
RoHS
RoHS compliant
RoHS compliantPackage 10-TFDFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
Tape & Reel (TR) Surface Mount Over Current Over Temperature Reverse Polarity ROHS3Compliant voltage regulator linear 320mV 3.3mm 500mA -40C~125C
PDF
/
Buying Options
Total Price: USD $0.91
Unit Price: USD $0.908154
≥1 USD $0.908154
≥10 USD $0.856744
≥100 USD $0.808254
≥500 USD $0.762501
≥1000 USD $0.719347
Inventory: 1292
Minimum: 1
-
+
Technical Details
Technical
PSRR 65dB (120Hz)
Dropout Voltage 320mV
Min Current Limit 520mA
Halogen Free Halogen Free
Voltage Dropout (Max) 0.45V @ 500mA
Current - Quiescent (Iq) 60μA
Protection Features Over Current, Over Temperature, Reverse Polarity
Number of Regulators 1
Voltage - Output (Min/Fixed) 1.22V
Watchdog Timer No
Accuracy 2.5 %
Control Features Enable
Quiescent Current 30μA
Current - Output 500mA
Output Configuration Positive
Max Supply Voltage 20V
Output Type Adjustable
Output Voltage 20V
Current - Supply (Max) 31mA
Terminal Pitch 0.5mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Position DUAL
Terminal Finish Tin (Sn)
ECCN Code EAR99
Number of Terminations 10
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Published 2014
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Dimensions
Length 3.3mm
Width 3.3mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Physical
Package / Case 10-TFDFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 20 Weeks
