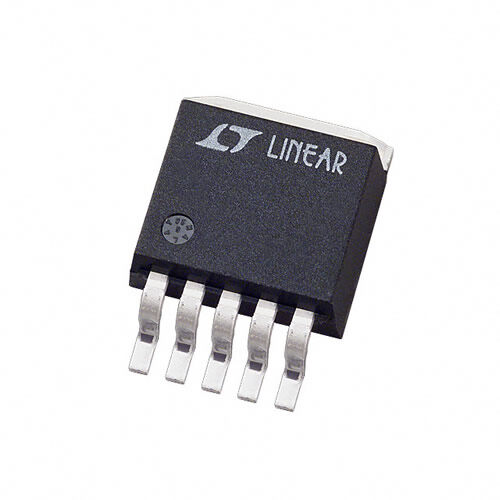

LT1764EQ-3.3
RoHS
/
Package TO-263-6
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
Bulk Surface Mount RoHS Compliant Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier voltage regulator linear 340mV 4.877mm 3A 125C
PDF
/
Buying Options
Total Price: USD $8.86
Unit Price: USD $8.8597
≥1 USD $8.8597
≥10 USD $7.27035
≥100 USD $7.04235
≥500 USD $6.8153
≥1000 USD $6.58825
Inventory: 9677
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status RoHS Compliant
Dimensions
Width 8.89mm
Height Seated (Max) 4.877mm
Technical
Min Current Limit 3.1A
Regulator Type FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Dropout Voltage 340mV
Input Voltage (Max) 20V
Number of Regulators 1
Input Voltage (Min) 2.7V
Output Voltage 1 3.3V
Voltage - Output 3.3V
Current - Output 3A
Qualification Status Not Qualified
Time@Peak Reflow Temperature-Max (s) 20
Number of Functions 1
Peak Reflow Temperature (Cel) 235
Terminal Form GULL WING
Terminal Position SINGLE
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Terminal Finish Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1
JESD-609 Code e0
Packaging Bulk
Physical
Number of Pins 5
Package / Case TO-263-6
Mount Surface Mount
