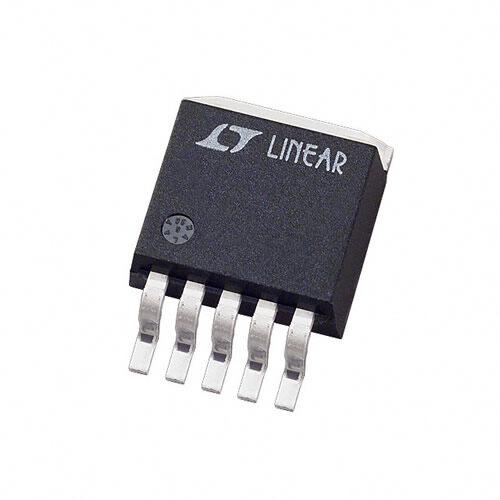

LT1764EQ
RoHS
/
Package TO-263-6
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
Bulk Surface Mount Non-RoHS Compliant Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier voltage regulator linear 340mV 4.877mm 3A 125C
PDF
/
Buying Options
Total Price: USD $9.4
Unit Price: USD $9.3974
≥1 USD $9.3974
≥10 USD $7.7102
≥100 USD $7.46985
≥500 USD $7.22855
≥1000 USD $6.9882
Inventory: 10004
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Dimensions
Width 8.89mm
Height Seated (Max) 4.877mm
Technical
Min Current Limit 3.1A
Dropout Voltage 340mV
Min Input Voltage 2.7V
Voltage - Output 20V
Current - Output 3A
Polarity Positive
Qualification Status Not Qualified
Number of Outputs 1
JESD-30 Code R-PSSO-G5
Time@Peak Reflow Temperature-Max (s) 40
Reach Compliance Code not_compliant
Number of Functions 1
Peak Reflow Temperature (Cel) 245
Terminal Form GULL WING
Terminal Position SINGLE
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Terminal Finish Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1
JESD-609 Code e0
Packaging Bulk
Physical
Number of Pins 6
Package / Case TO-263-6
Mount Surface Mount
