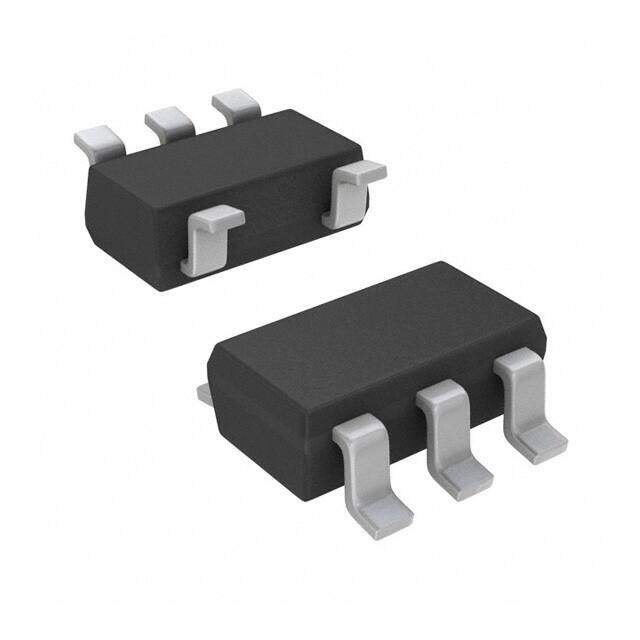

AS1358-BTTT-25
RoHS
/
Package SOT-23-5 Thin, TSOT-23-5
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
Tape & Reel (TR) Surface Mount Over Temperature RoHS Compliant voltage regulator linear 90mV 2.9mm 150mA -40C~85C
PDF
/
Buying Options
Total Price: USD $28.79
Unit Price: USD $28.7945
≥1 USD $28.7945
≥10 USD $23.6265
≥100 USD $22.8874
≥500 USD $22.14925
≥1000 USD $21.4111
Inventory: 1173
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Length 2.9mm
Technical
Dropout Voltage 90mV
PSRR 92dB ~ 62dB (1kHz ~ 100kHz)
Voltage Dropout (Max) 0.12V @ 150mA
Current - Quiescent (Iq) 90μA
Protection Features Over Temperature
Number of Regulators 1
Input Voltage (Min) 3V
Output Voltage 1 2.5V
Control Features Enable
Current - Output 150mA
Output Configuration Positive
Output Type Fixed
Output Voltage 2.5V
Voltage - Input (Max) 5.5V
Time@Peak Reflow Temperature-Max (s) 30
Reach Compliance Code unknown
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Terminal Finish Matte Tin (Sn)
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e3
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Weight 6.293594mg
Number of Pins 5
Surface Mount YES
Package / Case SOT-23-5 Thin, TSOT-23-5
Mounting Type Surface Mount
