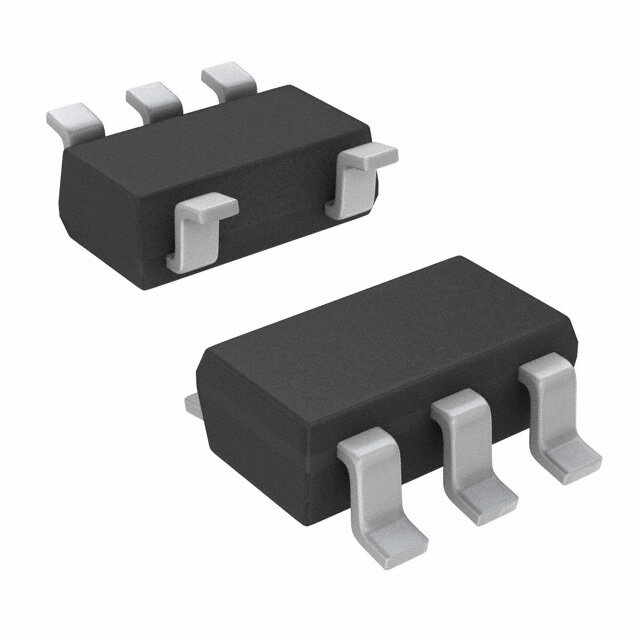

AP1159ADS10
RoHS
RoHS compliant
RoHS compliantPackage SC-74A, SOT-753
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
Active Positive 2014 Fixed voltage regulator linear -40C~85C TA 100mA 1V
PDF
/
Inventory: 7477
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
PSRR 80dB (1kHz)
Current - Quiescent (Iq) 192μA
Protection Features Over Current, Over Temperature, Reverse Polarity, Short Circuit
Number of Regulators 1
Voltage - Output (Min/Fixed) 1V
Control Features Enable
Current - Output 100mA
Output Configuration Positive
Output Type Fixed
Output Voltage 1V
Voltage - Input (Max) 14V
Current - Supply (Max) 3.3mA
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2014
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Physical
Supplier Device Package SOT-23-5
Package / Case SC-74A, SOT-753
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 14 Weeks
