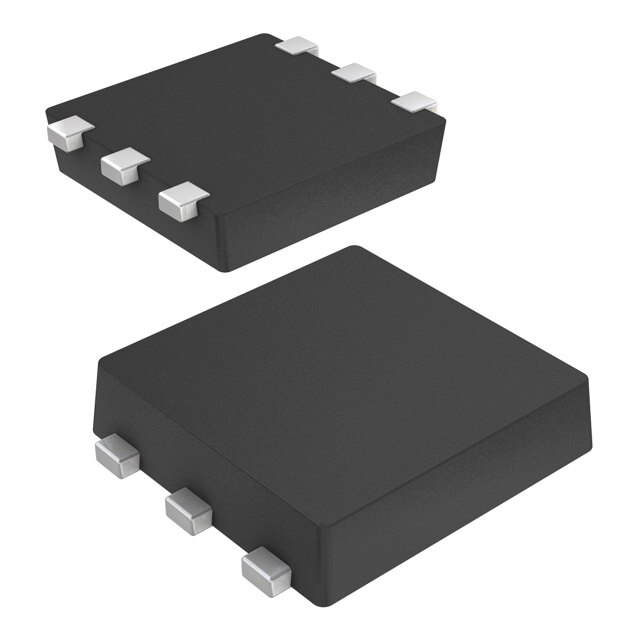

S-812C42BPI-C4WTFU
RoHS
RoHS compliant
RoHS compliantPackage 6-SMD, Flat Leads
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
Tape & Reel (TR) Surface Mount Short Circuit RoHS Compliant voltage regulator linear 4.284V 0.5mm 65mA -40C~85C TA
PDF
/
Buying Options
Total Price: USD $1.02
Unit Price: USD $1.0208
≥1 USD $1.0208
Inventory: 1132
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 0.5mm
Technical
Output Voltage1-Max 4.284V
Voltage Dropout (Max) 0.3V @ 10mA
Current - Quiescent (Iq) 500nA
Protection Features Short Circuit
Number of Regulators 1
Voltage - Output (Min/Fixed) 4.2V
Input Voltage (Min) 5.2V
Output Voltage 1 4.2V
Control Features Enable
Current - Output 65mA
Output Configuration Positive
Output Type Fixed
Voltage - Input (Max) 16V
Qualification Status Not Qualified
Current - Supply (Max) 2.1μA
JESD-30 Code R-PDSO-F6
Pin Count 6
Terminal Pitch 0.5mm
Number of Functions 1
Terminal Position DUAL
Technology CMOS
Terminal Finish TIN
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Series S-812C
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Physical
Surface Mount YES
Package / Case 6-SMD, Flat Leads
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 18 Weeks
