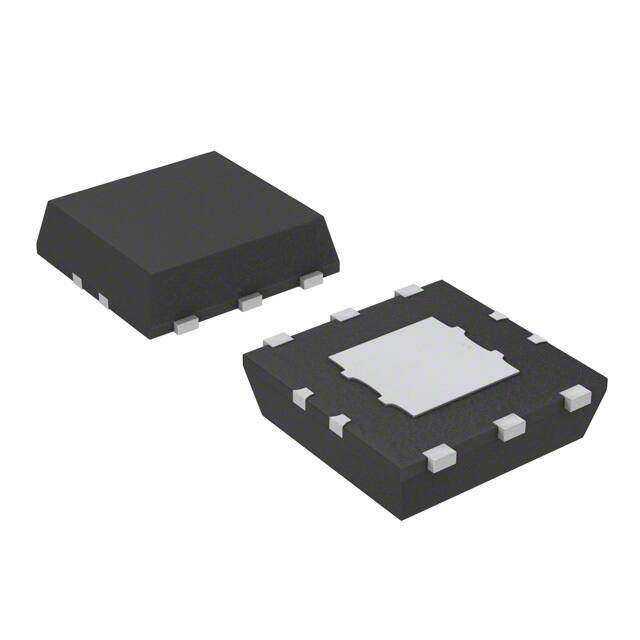

S-1131B32PD-N4RTFG image
Favorite
S-1131B32PD-N4RTFG image
Favorite

S-1131B32PD-N4RTFG

ABLIC U.S.A. Inc.
RoHS
RoHS RoHS compliant
Package 6-SMD, Flat Lead Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description Tape & Reel (TR) Surface Mount Over Current RoHS Compliant voltage regulator linear 3.264V 2.9mm 300mA -40C~85C TA
PDF
/
Inventory: 7376
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mounting Type Surface Mount
Package / Case 6-SMD, Flat Lead Exposed Pad
Surface Mount YES

Technical

Operating Temperature -40°C~85°C TA
Packaging Tape & Reel (TR)
Series S-1131
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 6
ECCN Code EAR99
Terminal Finish Tin (Sn)
Technology CMOS
Terminal Position DUAL
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Terminal Pitch 0.95mm
Reach Compliance Code compliant
Time@Peak Reflow Temperature-Max (s) 10
Pin Count 6
JESD-30 Code R-PDSO-F6
Current - Supply (Max) 65μA
Qualification Status Not Qualified
Voltage - Input (Max) 6.5V
Output Type Fixed
Output Configuration Positive
Current - Output 300mA
Control Features Enable
Output Voltage 1 3.2V
Input Voltage (Min) 2V
Voltage - Output (Min/Fixed) 3.2V
Number of Regulators 1
Protection Features Over Current
Current - Quiescent (Iq) 1μA
Voltage Dropout (Max) 0.34V @ 100mA
PSRR 70dB (1kHz)
Output Voltage1-Max 3.264V

Dimensions

Height Seated (Max) 0.9mm
Length 2.9mm
Width 2.8mm

Compliance

RoHS Status RoHS Compliant
