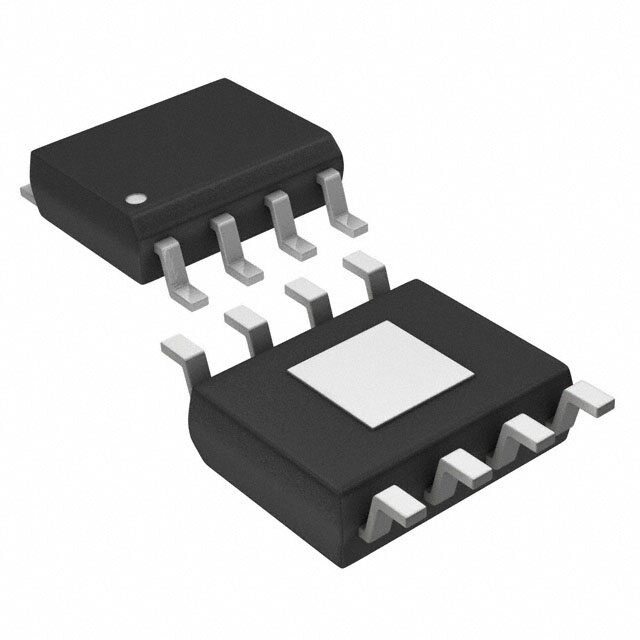

XC9251B085QR-G
RoHS
RoHS compliant
RoHS compliantPackage 8-SOIC (0.154, 3.90mm Width) Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
Cut Tape (CT) Tin (Sn) Discontinued Step-Down DC to DC switching regulator 12V 2A 500kHz -40C~105C TA
PDF
/
Inventory: 9270
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154, 3.90mm Width) Exposed Pad
Number of Pins 8
Technical
Operating Temperature -40°C~105°C TA
Packaging Cut Tape (CT)
Published 2004
JESD-609 Code e3
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
ECCN Code EAR99
Terminal Finish Tin (Sn)
Subcategory Switching Regulator or Controllers
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Time@Peak Reflow Temperature-Max (s) 10
Function Step-Down
Number of Outputs 1
Voltage - Input (Max) 30V
Output Type Adjustable
Voltage - Input (Min) 7V
Analog IC - Other Type SWITCHING REGULATOR
Output Configuration Positive
Current - Output 2A
Max Output Voltage 12V
Voltage - Output (Min/Fixed) 1.2V
Topology Buck
Control Mode VOLTAGE-MODE
Frequency - Switching 500kHz
Synchronous Rectifier No
Min Output Voltage 1.2V
Compliance
RoHS Status ROHS3 Compliant
